The Workflow Builder is a no-code interface that enables Admins to create Agentic Workflows for AI Agents without writing a single line of code. Each Workflow is built using modular blocks that define how the AI Agent should:

• Collect information from users

• Evaluate conditions

• Take actions across different systems

• Respond with the right information

• Or hand off to a human Agent when needed

Here’s a breakdown of the six key blocks available in the builder:

TABLE OF CONTENTS

• Trigger Block
• Collect Info Block
• API Action Block
• Condition Path Block
• Custom Response Block
• Agent Handoff Block
• Workflows Versioning

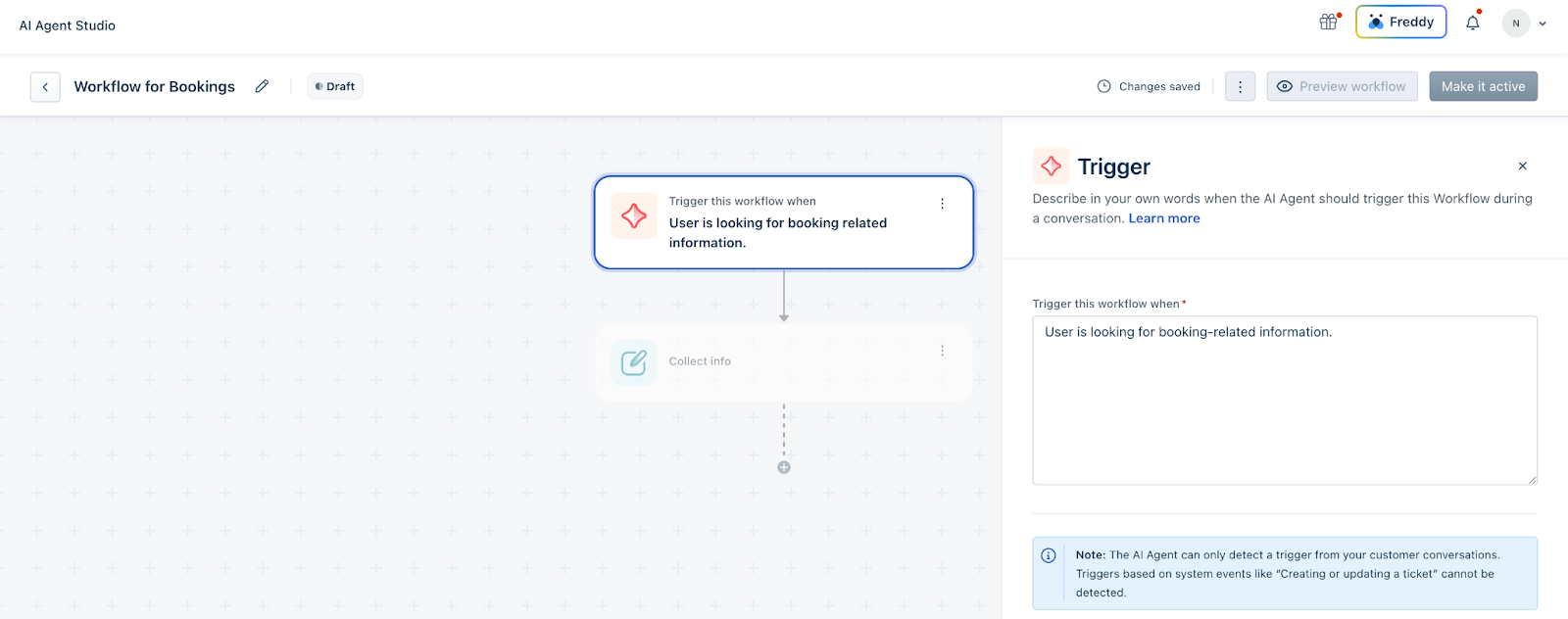

Trigger Block

What it does:
This is the starting point of any Workflow. It defines when the AI Agent should initiate a Workflow, based on user input.

How to use:
Click the Trigger block to open a configuration panel where you can enter natural language instructions. This is where you define phrases or expressions employees might use to trigger the Workflow.

You can optionally include real-world examples and business-specific terms to make the AI Agent more effective. For instance, in an IT Service Management domain, employees may use terms like:

• “My laptop is broken, need a new one”

• “I need access to the finance system”

• “Check status of my software request”

• “My password has expired”

Providing these domain-specific examples helps the AI better recognize employee intent and respond accurately—especially for industries with nuanced workflows or unique vocabulary.

Best Practice: Use varied, natural-sounding examples that your employees actually say.

Note: A common misconception is that the Trigger block can act on system events (like conversation initiation or positive/negative feedback) or detect sentiment. It cannot. The Trigger block only responds to employee queries.

Collect Info Block

The collect info block allows you to gather specific information from the employee during an AI Agent conversation. The collected inputs can then be used to trigger API actions, evaluate conditions, update properties, or send personalized responses within the workflow.

For example, you can collect details such as an IT asset tag, employee ID, ticket number, or any other relevant identifier required to complete a service request.

You can collect and map the following types of input parameters:

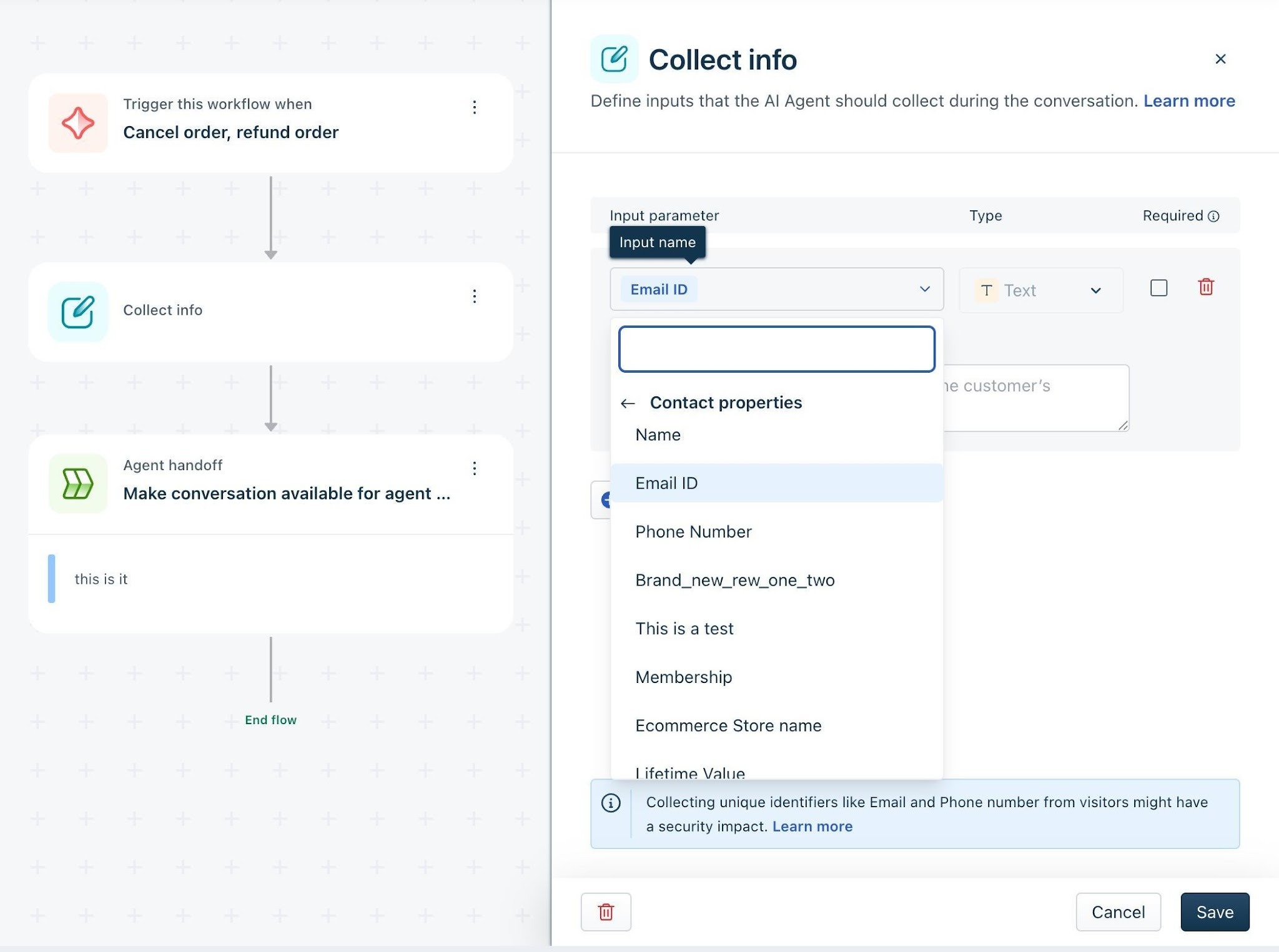

• Requester property: Select from the default and custom requester properties available in your account.

• Custom value: Select this to store employee information in temporary workflow-scoped variables.

For each input collected, you can additionally define the data type, add a description, and decide if the input is mandatory or not.

Note: Collecting user identifiers such as email and employee ID may have security implications.

Secure data handling

When building workflows in Agent Studio, it’s important to handle requester identification correctly—especially for service request lookups, asset assignments, or employee-specific actions.

Existing mapped requester properties or session data can be used directly in workflows. When available, the AI Agent skips re-collecting these details, providing a faster, friction-free experience for users.

If details are not passed through the widget, the Admin must ensure the workflow collects and verifies required identifiers before sharing sensitive information.

For example, in a check service request status use case, the workflow should:

1. Collect the Ticket ID

2. Collect an Employee Identifier (e.g., employee ID or email)

3. Cross-verify both before displaying service request details

This prevents unauthorized data exposure and ensures compliance with security best practices.

Tip: Always prefer passing verified user properties via the widget script to reduce friction and improve workflow reliability.

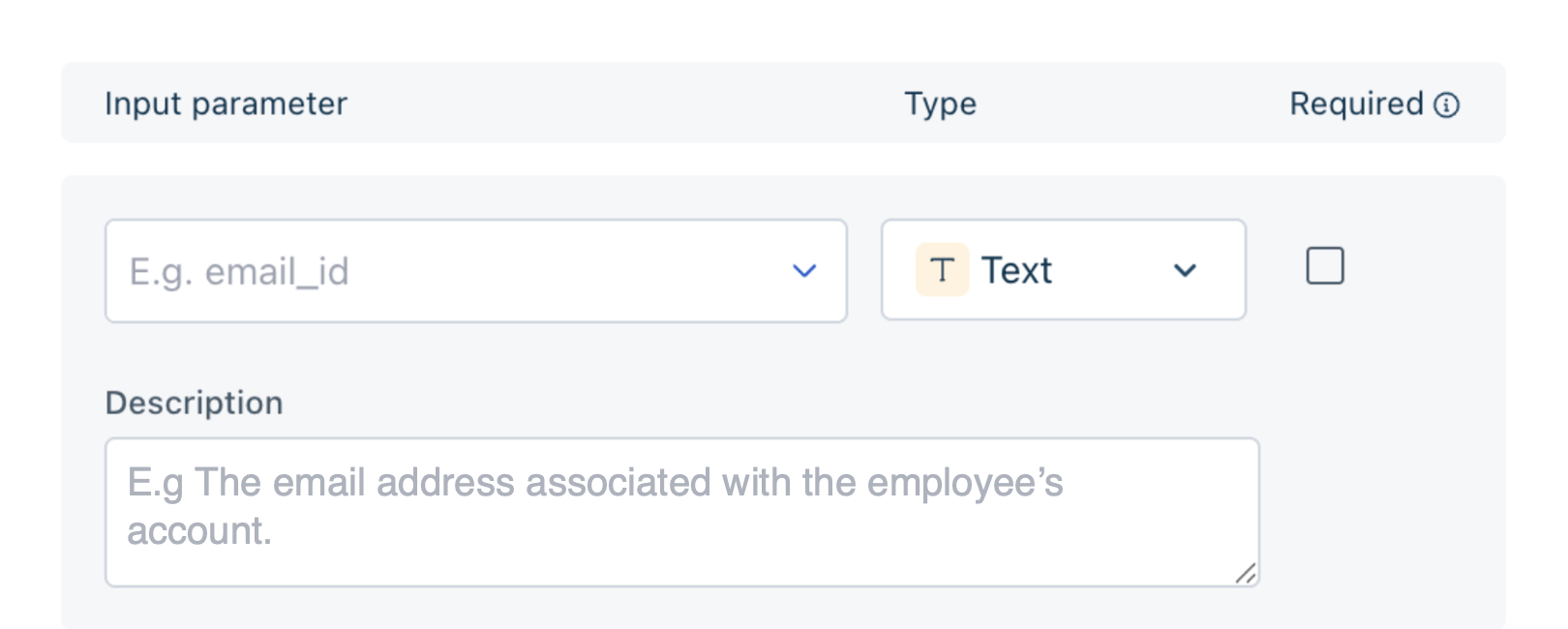

Collect input parameter

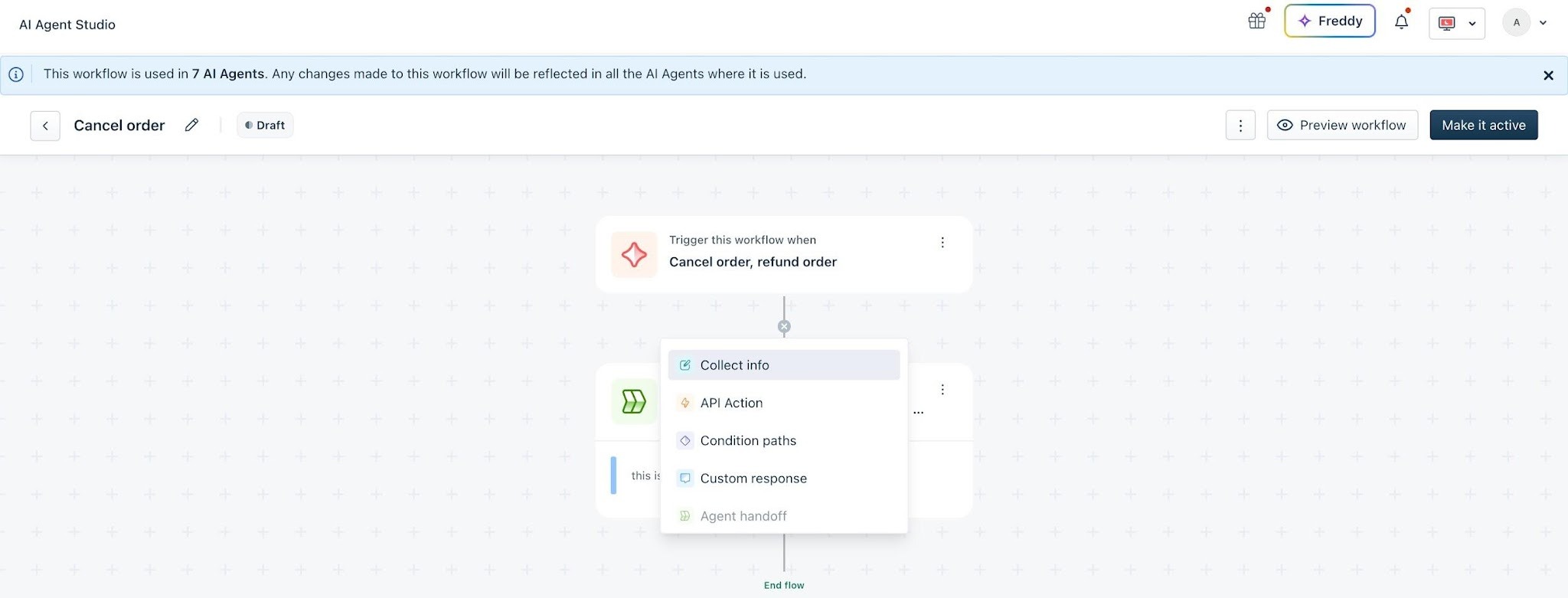

1. In the workflow editor, click Add block > Collect info.


2. Click Input parameter and select the required type (contact, ticket, or custom).


3. In the Description field, provide details on the input required.
   For example, if you collect an employee's email ID and the description states “Email ID associated with the access request”, the AI Agent will prompt the employee to provide the ID linked to their request.


4. From the Type drop-down, map the appropriate data type for the input:

   • Text: Collects free-form input such as names, addresses, or asset tags/ticket IDs.

   • Number: Collects numeric values such as quantities, PIN codes, or ticket numbers.

   • List: If you define items in the description, the AI Agent will treat the response as text input. The description guides the user’s response but does not display selectable options.

   • Boolean: Collects a true/false response. This is rendered as plain text and not as a radio button or toggle.

5. Select the Required field to mark the input as mandatory or optional.

   • When set as mandatory, the AI Agent continues prompting the employee until the required information is provided.

   • When set to optional, the Agent attempts to collect the information but continues the workflow even if the employee does not respond.

6. Click Save.
   Once configured, the collected inputs can be used in subsequent blocks within the workflow to personalise responses, update records, or trigger actions.

Best Practice:

• Keep questions concise and relevant

• Make only essential fields mandatory to reduce friction

• Use terms your employees are familiar with (e.g., “ticket ID” vs. “request reference number”, or “asset tag” vs. “device serial”)

API Action Block

The API Action Block enables your AI agent to securely interact with external systems in real time. Instead of only responding with static information, your AI can retrieve live data, trigger backend operations, and make decisions based on external responses — all within a single Workflow.

This allows you to build operational, end-to-end automation flows such as asset management, provisioning access, or incident & request management.

The API Action Block connects your Workflow to an external API endpoint. When triggered, it:

1. Sends a request to an external system

2. Receives the response

3. Extracts defined outputs

4. Makes those outputs available within the same Workflow

This enables dynamic and context-aware automation.

Multi-step API orchestration within a Workflow

You can use outputs from a previous API call in a subsequent API call within the same Workflow. This makes it possible to chain actions intelligently without re-collecting data from the user.

Example: Fetch Service Request Status → Update Service Request

Step 1: Collect Ticket ID/Request ID from the employee.

Step 2: Call Fetch Service Request Details API.

Step 3: Capture outputs such as:

• Request Status

• Requester ID

• Tag

    Step 4: Use those outputs in a second API call to:

• Update request status

• Assign to group

• Add a private note

Because outputs are reusable across blocks, your Workflow remains clean, efficient, and logically structured.

Configure the API Action Block

Setting up the block involves two primary steps:

1. Choose or create an API action

2. Map Workflow variables to API parameters

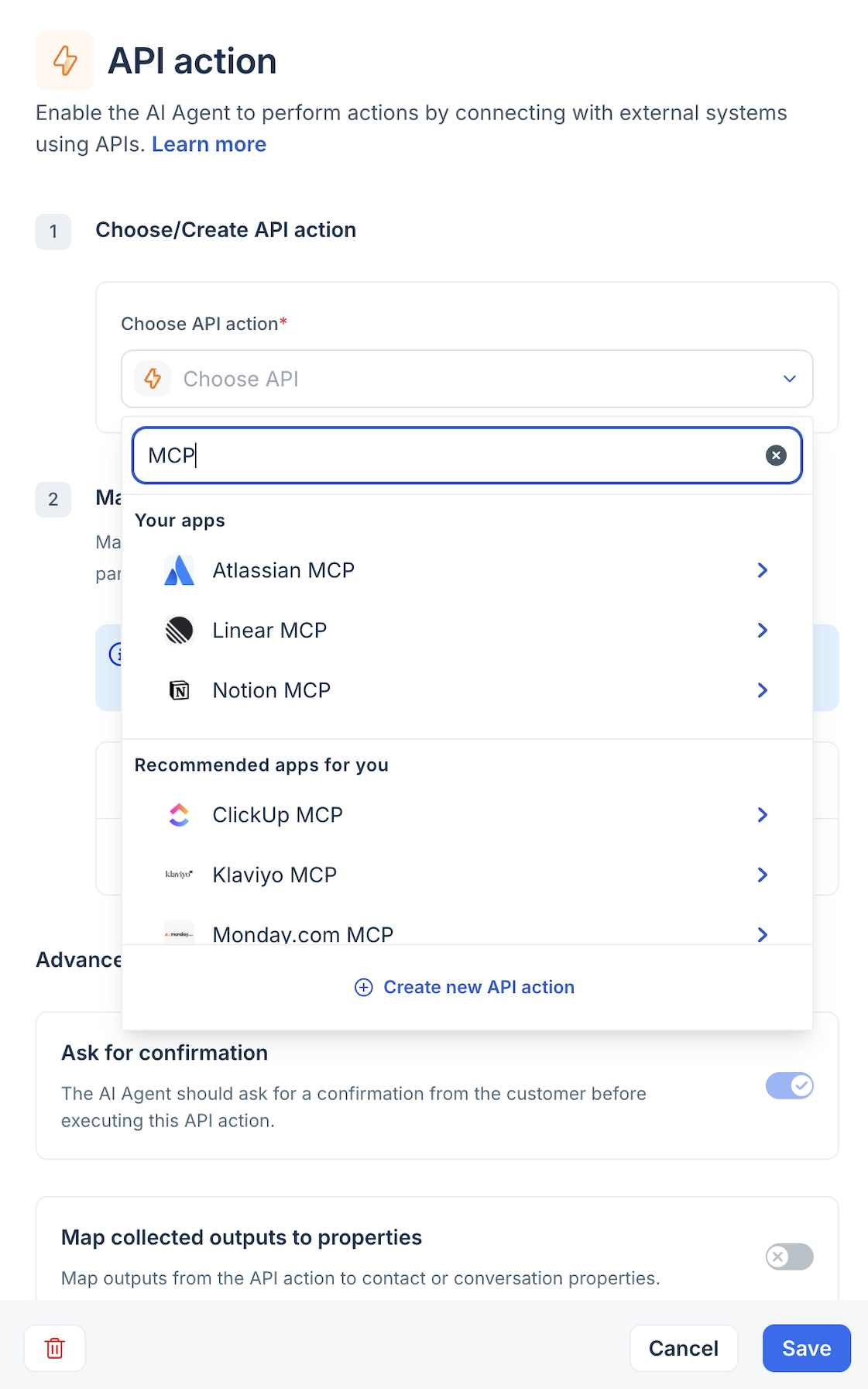

1. Choose or Create API Action

1. Select an existing API action from the dropdown

2. Or, click Create new API action to configure a new one from scratch.

To create a new API:

• Enter a name

• Define input variables

• Configure the API URL, headers, auth, and body

• Test the response

• Define output variables to store and reuse later



2. Map collected inputs to API parameters

After selecting an API action, map Workflow variables to API parameters.

Example:

This ensures the correct data is passed when the API is executed.

For high-impact actions, enable Ask for confirmation under Advanced preferences. When enabled, the AI will confirm with the employee before executing actions such as:

• Closing a ticket

• Transferring ownership

• Modifying a sensitive configuration

• Updating requester information

This prevents accidental or unintended changes.

Use MCP servers with API actions

Freshservice supports integration with the Model Context Protocol (MCP) server, which provides a secure, standardized layer for AI-to-system communication.

Instead of directly exposing raw APIs, MCP:

• Acts as a middleware layer between AI clients and Freshworks products

• Uses OAuth-based authentication

• Exposes controlled, governed tools

• Ensures operations follow Freshworks permission models

Unlike traditional integrations that simply move data between systems, MCP enables AI agents to discover available tools and act contextually within defined security boundaries.

Learn how to configure and connect the Freshservice MCP server.

Condition Path Block

The condition path block allows you to branch the workflow based on information collected earlier in the conversation or retrieved from an API. It evaluates defined criteria and routes the conversation through different logic paths.

You can use the block to define the following details in the workflow:

• Set multiple conditions (e.g., if ticket priority is 'Urgent')

• Add an Else path as a fallback

• Use outputs from the API or collected variables in your logic

For example, after retrieving service request details, you can check whether the request type is 'Service Request'. Based on the evaluation, the workflow can proceed with the appropriate next step.

Define condition rules

To define a conditional path, you must clearly define the condition type, the operator, and the value. Together, these elements determine how the workflow evaluates data and decides which path to follow.

Condition types

You can configure conditions using the following properties:

• Requester property: Default properties (such as phone number, email, first name, last name) and custom contact properties configured in your account.

• Ticket property: Default properties (such as ticket ID) and custom ticket fields.

• Account property: Account-level properties such as configured Business Hours (default or custom).

List of operators

It specifies the comparison logic applied between the selected property or variable and the defined value. After selecting the condition type and operator, specify the value to complete the rule.

Example:

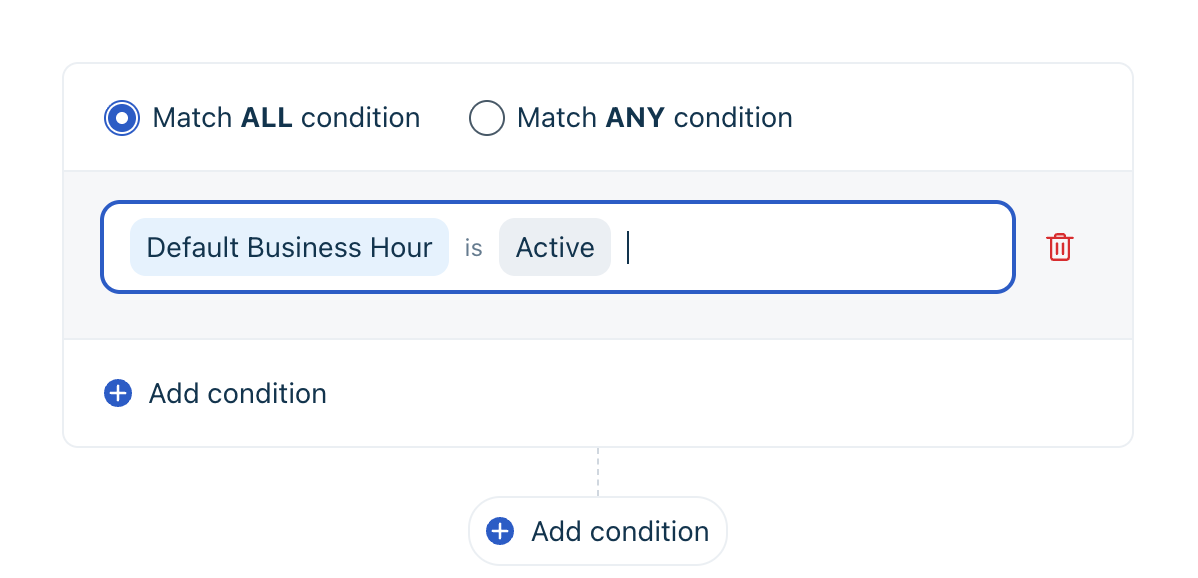

If Business Hours is Active, the workflow can route the conversation to a live agent. If the condition is not met, the workflow can proceed with an after-hours response.

Note: The available operators vary based on the selected condition type. For example, Business Hours supports only Is and Is not, while text-based properties support additional comparison operators.

To add a conditional path:

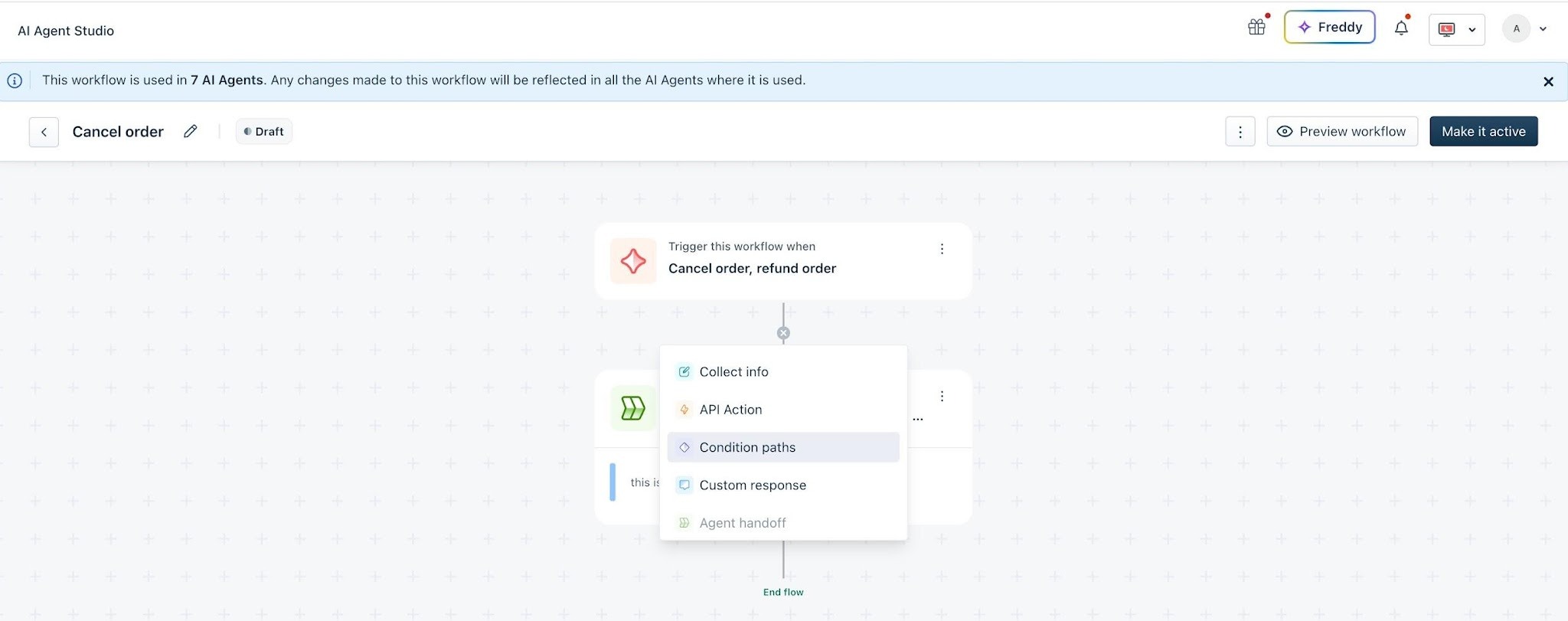

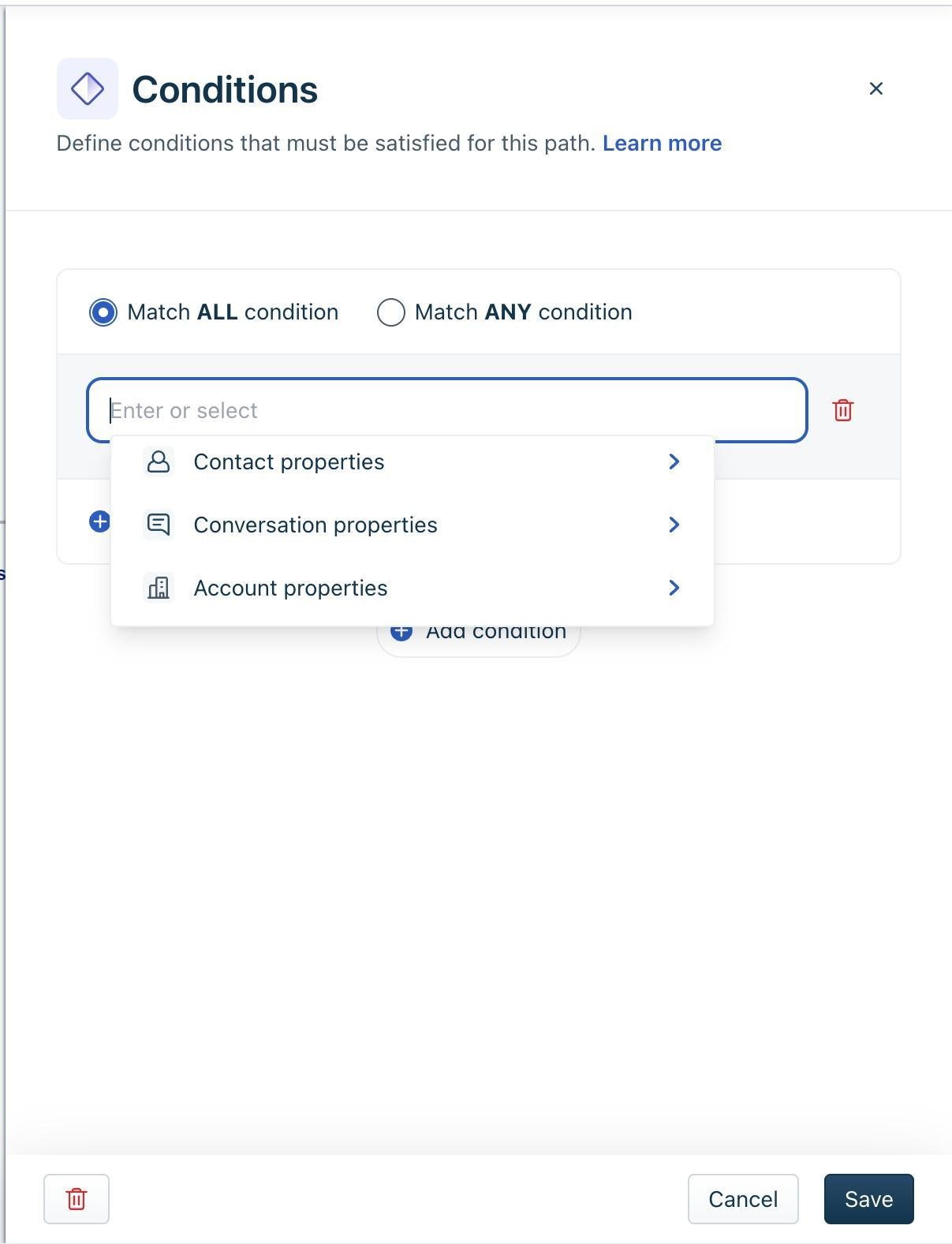

1. In the workflow editor, click Add block >Conditional path.


2. Select the condition/property type and corresponding property. For example, contact Account properties > Business Hours.


3. Choose the appropriate operator and define the value.


4. Add additional conditions if required, and choose whether to meet all or any of the defined conditions.

5. Click Save.



Best Practice:

• Keep each path focused and purposeful

• Add fallback paths for incomplete or unexpected responses

Custom Response Block

What it does:
This block allows you to manually define how the AI should respond to the employee.

You have two options to set up your responses:

• AI-generated response - Use when the reply depends on employee inputs or fetched data (e.g., “Your service request {ticket_id} for {request_type} has been assigned to {assignee} and is currently {status}”). Saves time and ensures dynamic accuracy.

• Send your own response - Use when the reply must always stay the same (e.g., “Please contact the IT service desk for further assistance”). Good for policies, disclaimers, or standard instructions.



Best Practice:
Use Custom Responses when tone, brand voice, or exact phrasing matters.

Agent Handoff Block

What it does:
 This block transfers the conversation to a live human agent when needed.

 This is useful in:

• A workflow or specific condition requires handing the conversation over to agents

• When AI can’t resolve the query



Best Practice:
 Use this block at points of failure or uncertainty. Also, set expectations with a message like:

“I’m connecting you with a human agent who can help further.”

Workflows Versioning

Workflows versioning helps you make changes to existing Workflows quickly without having to disrupt or delete the active or live Workflow.

To make changes to an existing workflow,

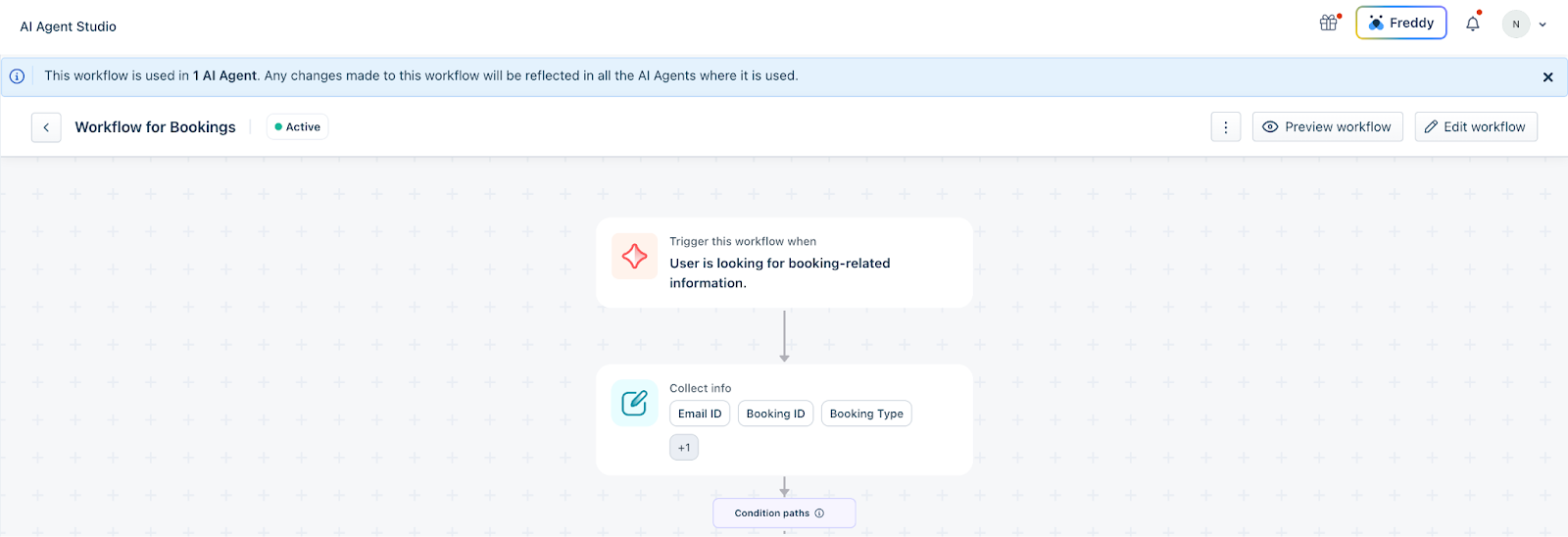

1. On the Workflows list page, under the Created Workflows tab, click on a Workflow you want to make changes to.

2. Click Edit Workflow on the top right.

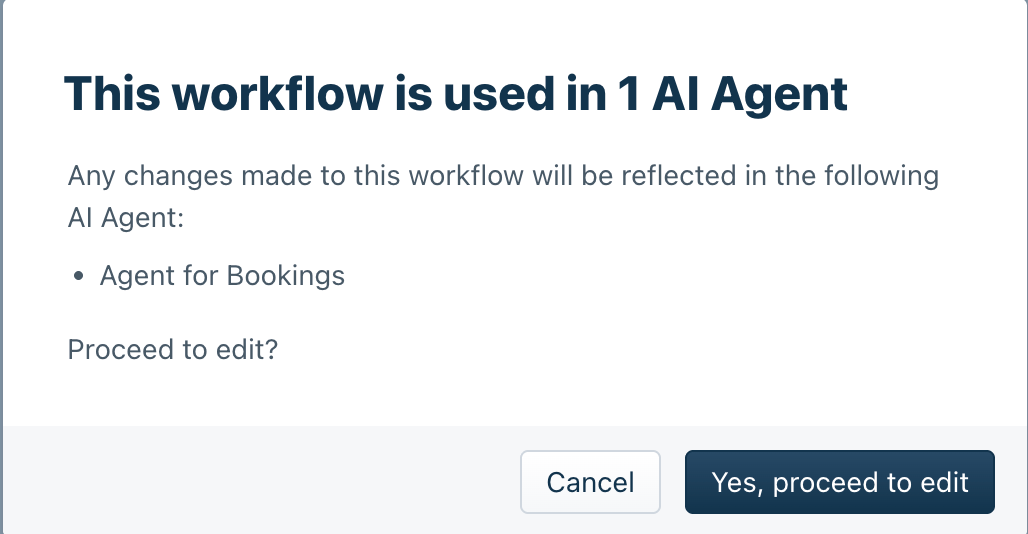

3. In the confirmation pop-up that discusses which AI Agents are using the Workflow, click 'Yes' and proceed to edit.

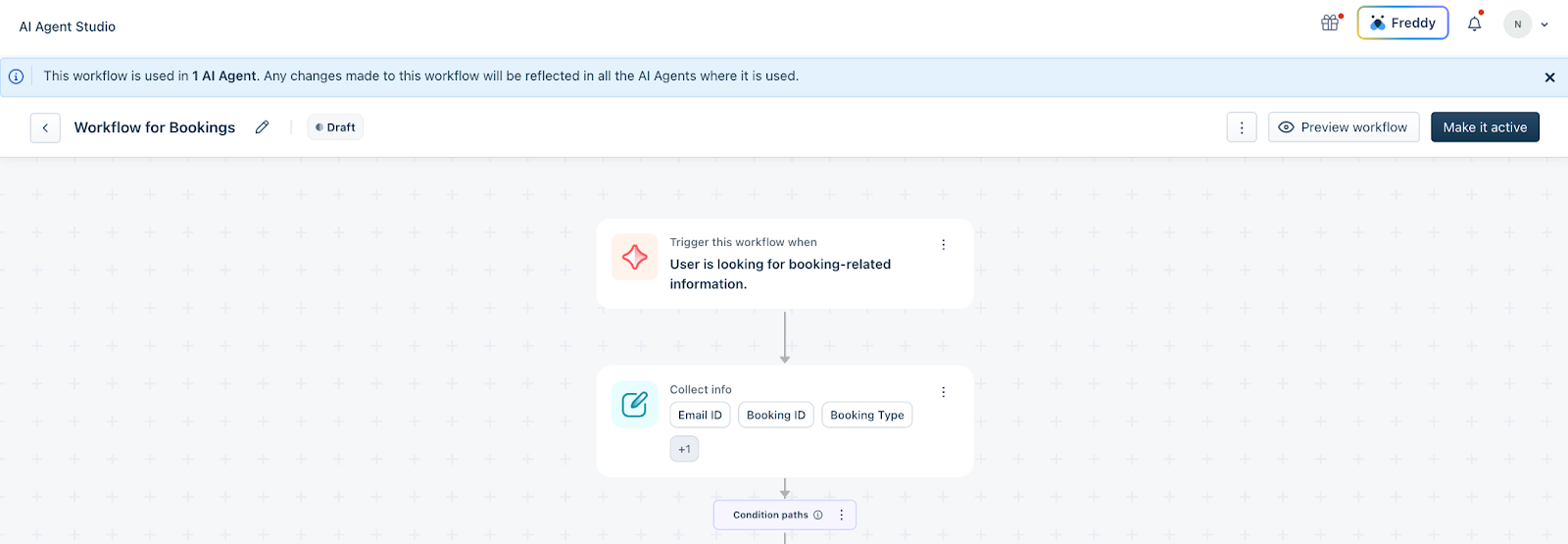

4. A draft of the active Workflow will be created, where you can  make the changes required (for example: Changing a condition), ensuring the current active Workflow remains as-is

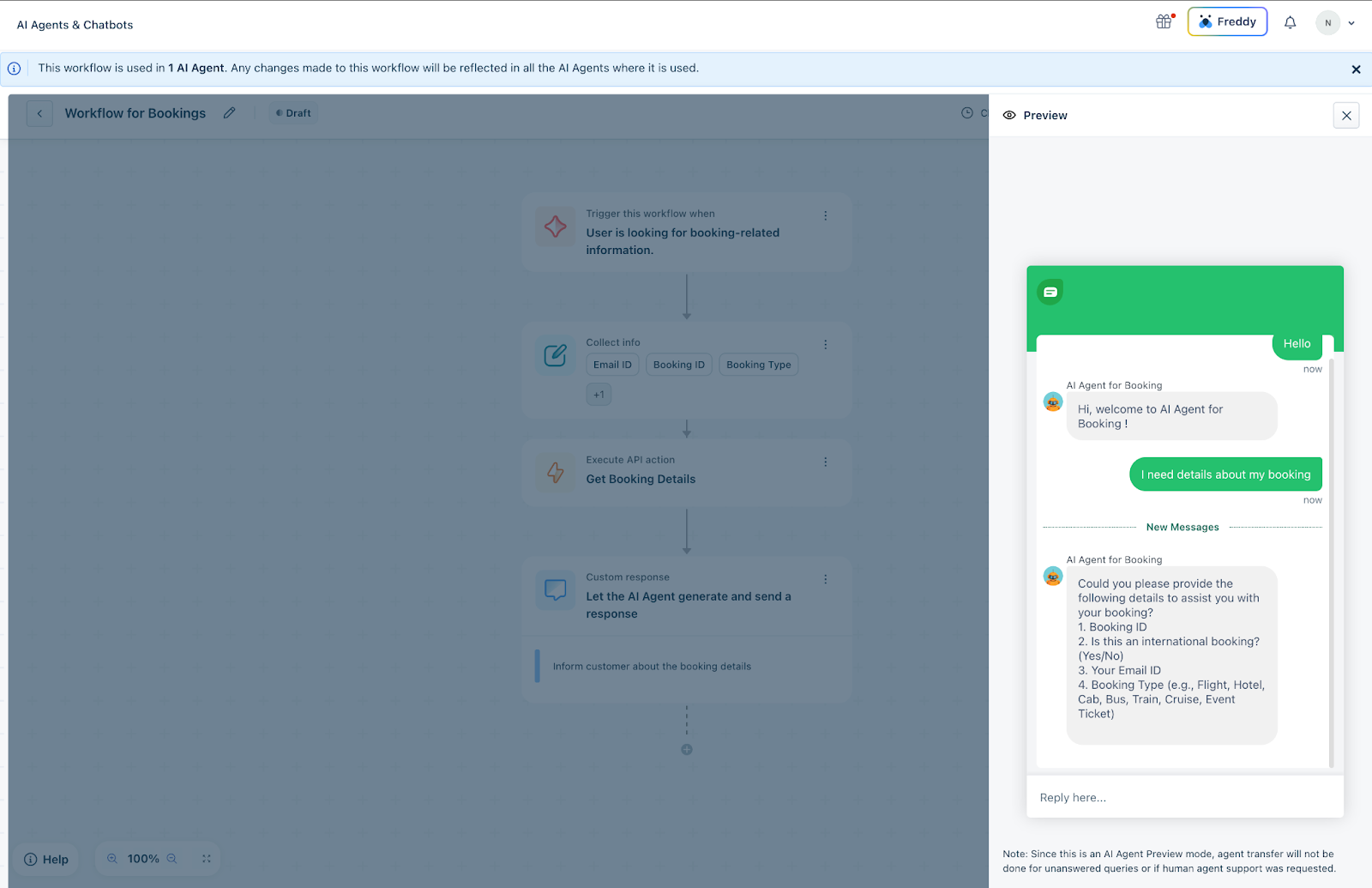

5. You can preview the changes you have made by clicking Preview Workflow at the top. Here you can test the Workflow to check if the changes you have made are now reflected.

6. Once the changes are made, click Make it active

7. In the confirmation pop-up that appears, click Yes, Make it active.

8. When you make a draft version active:

   1. The draft version will replace the current active version in both the Workflows library and AI agents

   2.  The previous active version will be removed

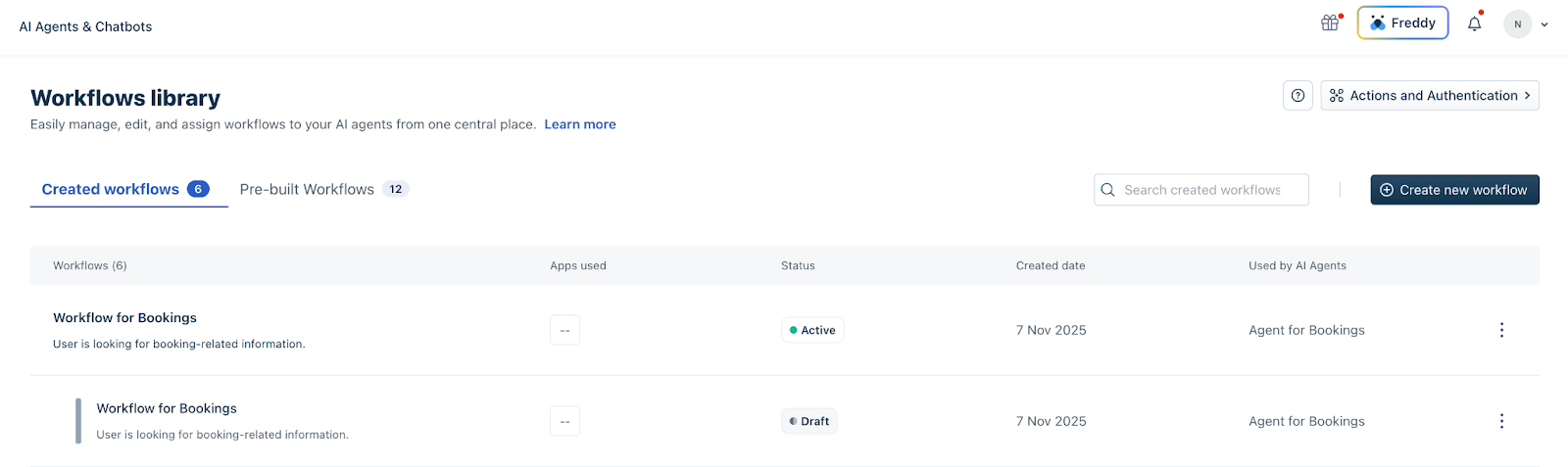

9. If you have a draft version that you haven’t made active yet. You will see the active and draft versions in the Workflows list view.

Note:

1) Workflow versioning is applicable only to custom Workflows.

2) Once the draft version is made active, all AI agents using the Workflow will use the new active version.
