Introduction


The integration between Freshservice and ServiceNow offers service management teams enhanced visibility and efficiency when collaborating with multiple stakeholders. Admins can seamlessly create, update, and sync tickets between both systems using predefined recipes.


With the Freshservice and ServiceNow integration, agents can:

  • Create and update tickets between Freshservice and ServiceNow

  • Map custom fields across both systems

  • Select tickets for sync based on specific conditions

  • Define the workspace for tickets to be added or mapped from

  • Sync conversation notes


Prerequisites

You need to have an active ServiceNow account. You will need your login credentials and ServiceNow base URL to enable this integration.


Every account administrator within Freshservice can initiate this integration.


Installation and configuration

  1. Go to your Settings. Search for Apps using the search bar.

  2. Click on Connector Apps. From the list of apps, click on ServiceNow Connector.

  3. Install the app by clicking on the ‘Install’ button and you will be directed to the configuration page.

  4. Enter the Domain URL and the API Key to connect your Freshservice account. Click Next.

  5. Enter your Username, Password, and Base URL to connect your ServiceNow account. Click Connect and once the connection is established successfully, click Install.

How to check the list of all available recipes

  1. After installation, go to Settings > Connector Apps. You will see your installed ServiceNow Connector app listed here. You have two options here
    a. Configure App: Use this to edit the default recipes, view Overview dashboard metrics, and configure your Widget settings. These are explained in the upcoming section.

b. Settings: If you wish to go back to your configuration page and disconnect or re-authenticate ServiceNow or Freshservice use this option.

  1. Click on the Configure App option. It will take you to a tab with Overview and Recipes.

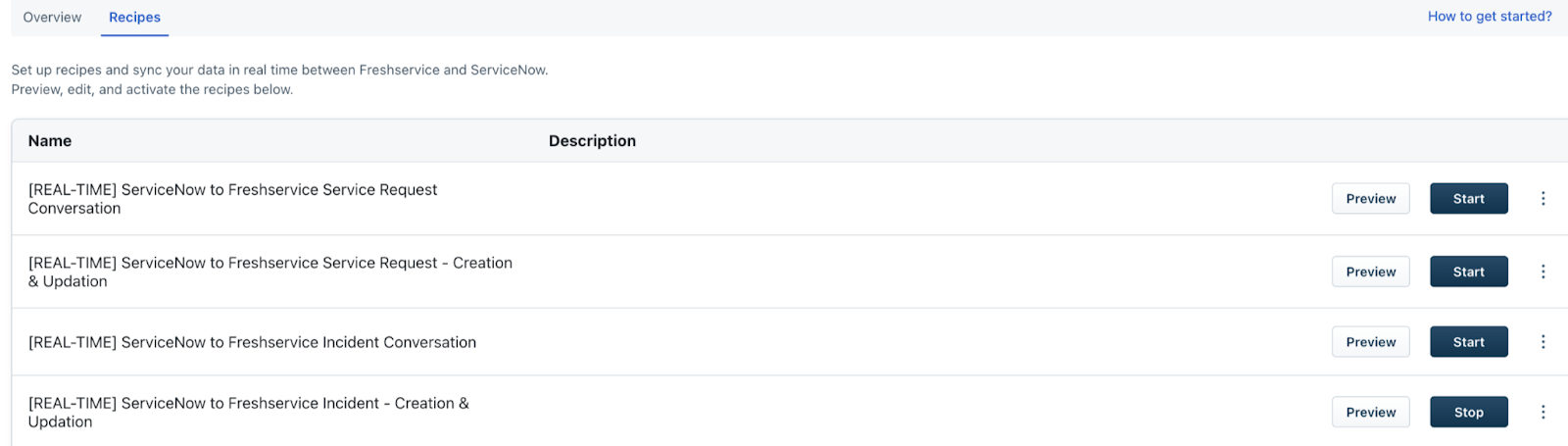

  2. Click on the Recipes tab. It will show you a list of all the available recipes


List of all the default recipes available

Here is the list of all default recipes available for the Freshservice integration with ServiceNow


Recipe

Function

ServiceNow to Freshservice Change ticket creation and upate

Create a new change ticket or update an existing one on Freshservice whenever a change ticket is raised on ServiceNow

ServiceNow to Freshservice service request conversation

Add a conversation note to the Freshservice ticket whenever there is a conversation note added to the corresponding servie request in Servicenow

ServiceNow to Freshservice Incident conversation

Add a conversation note to the Freshservice ticket whenever there is a conversation note added to the corresponding incident in Servicenow

ServiceNow to Freshservice change conversation

Add a conversation note to the Freshservice ticket whenever there is a conversation note added to the corresponding change ticket in Servicenow

ServiceNow to Freshservice incident ticket creation and upate

Create a new incident ticket or update an existing one on Freshservice whenever an incident ticket is raised on ServiceNow

ServiceNow to Freshservice service request ticket creation and upate

Create a new service request ticket or update an existing one on Freshservice whenever a service request ticket is raised on ServiceNow

Freshservice to  ServiceNow Real Time Conversation for Incident

The conversation added to the Freshservice incident is updated to ServiceNow incident in real time

Freshservice to ServiceNow Real Time Conversation for Service Request

The conversation added to the Freshservice service request is updated to ServiceNow service request in real time

Freshservice to Service now change ticket creation & update

Create a change ticket or update an existing one on ServiceNow whenever a change ticket is raised on Freshservice

Freshservice to Service now SR ticket creation & update

Create a service request or update an existing one on ServiceNow whenever a service request is raised on Freshservice

Freshservice to Service now Incident ticket creation & update

Create an incident or update an existing one on ServiceNow whenever an incident is raised on Freshservice



How to preview, edit, activate, and stop the recipe

You will be able to preview, edit, activate, and stop the available recipes.


Preview recipe:

Click on the Preview button next to the recipe that you want to view. The recipe window will open and you will be able to view the steps involved in the recipe with pre-configured triggers, actions, and conditions.


On the left hand panel, you will be able to view the Recipe status, jobs executed, dependencies, and activity timeline.


Start recipe:

You can activate the recipe in two ways:

  1. From the main recipe page, click on the Start button corresponding to the recipe you want to activate.

  2. Click on the Preview button. Within the recipe window, you will see an option to Start the recipe.


Edit recipe:

Follow the below steps to edit the recipe:

  1. Click on the preview button next to the recipe to open the recipe window. If the recipe is inactive, you will find the edit button available.

  2. If the recipe is active, stop the recipe by clicking on the Stop recipe button. Now click on Edit recipe button.


Stop recipe:

You can activate the recipe in two ways:

  1. From the main recipe page, click on the Stop button corresponding to the recipe you want to stop

  2. Click on the Preview button. Within the recipe window you will see an option to Stop the recipe.


How to customize a recipe

Each recipe has the following components: Trigger, Actions, and Conditions. You can customize any part of the recipe depending on your specific use case by just clicking them.

Let’s take one of the default recipes as an example and see how you can customize it further.


Recipe - ServiceNow to Freshservice Change ticket creation & update


Trigger

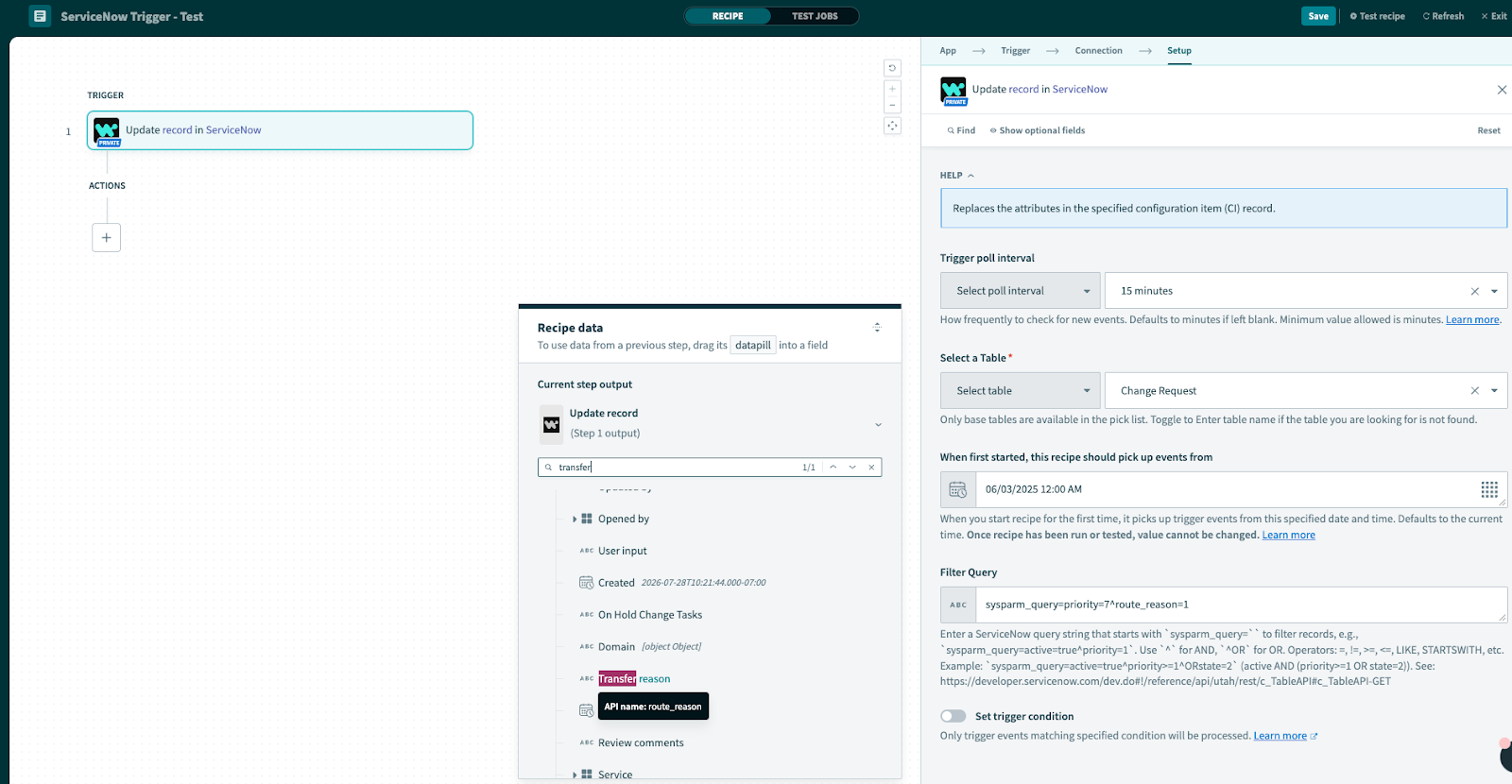

The trigger acts as the starting point for any recipe. For this recipe, the trigger is a new change ticket created in service now. You can customize the trigger in the below mentioned ways.

  • You can either add optional fields or add a trigger condition. For example - you can choose the workspace which the trigger will listen to.

  • You can view the list of optional fields available for the particular trigger by clicking on the ‘optional field available’ button.

  • The trigger condition can be added by clicking on the ‘+’ option below the trigger conditions section. You can select if you want to set up an AND or OR condition.

  • You can set the trigger data by choosing from a list of available attributes. For example - you can set the priority of the ticket as one of the conditions.




Condition

The condition acts as a checkpoint within the recipe flow and executes a specific set of actions based on the condition matched. This recipe checks for two conditions. First, the recipe checks which Freshservice workspace the ticket should be added to based on the ServiceNow group source. Post that it checks if the change ticket already exists within that workspace. You will be able to check and edit the following conditions.

  • The data field and the value to be checked for any particular condition. You can pick the data field from a list of available attributes and set the value that needs to be met. For example - you can set the condition as ‘execute only if the impact value of the ticket is less than 2’.


Action

The recipe performs a specific set of actions based on the conditions specified. Based on the conditions mentioned above, the recipe either adds or updates the change ticket within a specific workspace. You can customize the following parts of the action:

  • You can choose to perform any action from the existing set of actions available under the ‘All Actions’ tab.

  • You can map values from the ServiceNow ticket records to the corresponding fields in Freshservice.

  • You can add more fields from the available set of optional fields


After making all the necessary changes, you can save the recipe directly or test the recipe first to check if it is working correctly.

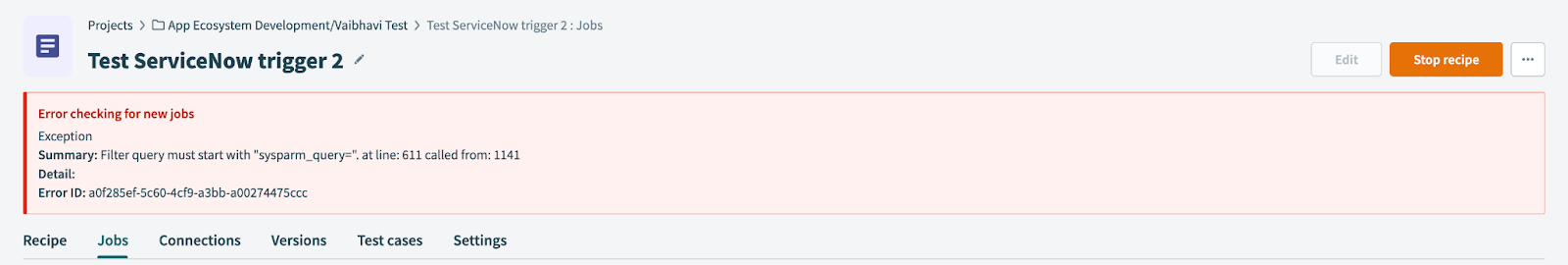

How to check failed jobs

To view and troubleshoot the reason for a failed job under a recipe please follow the steps mentioned below:

  1. Click on the Preview button of the specific recipe from the main recipe page.

  2. In the recipe window, navigate to the Jobs tab

  3. You will see the list of all the jobs executed under a particular recipe here

  4. You can filter to check just the failed jobs by using the Status filter on the top panel

  5. You can click any particular job to view further details about how the job was executed

  6. If you click on a job that has failed, you will be able to view the error details that will help you identify the cause of failure

  7. You can resubmit the job once you review and fix the issue.


Overview dashboard

The Overview tab also helps you understand the total number of tasks that you've consumed (based on which your billing for the app will happen). It also helps you have a consolidated view of the number of successful job vs. failed jobs for a given recipe.


Frequently Asked Questions

  1. What are tasks? And how is that relevant for billing and payment when the customer starts using the live app?

A task is any operation that happens between two apps. Ex: To create a service request in Freshservice when a service request is created in ServiceNow, 1 task is consumed to check if there is an existing service request on Freshservice with the same ServiceNow ticket ID and 1 task is consumed to create or update the service request.

  1. Is there a possibility to trial the integration once it's live?

Yes. You will be given 500 tasks for free to trial any connector app. Once your 500 tasks have been consumed, you can purchase the add-on to get additional tasks.

  1. How will I monitor my task consumption?

You will be able to see the available tasks & tasks consumed from within the overview dashboard in the app. You will get an email whenever you are close to consuming all your tasks.

  1. What happens when I consume all my tasks?

Once you exhaust this limit, all your workflows will stop working. If you are signed up for auto-recharge, there will be an auto-purchase of tasks once all tasks have been consumed so there’s no delay in service.

  1. How do I pay for these tasks? What is the price point for the apps under Connector Apps?

$80 recurring add-on for 5000 tasks. You can buy multiple packs and it will be tied to your parent billing period.

  1. How can customers purchase additional packs for the data sync app?

Customers can purchase the add-on via the subscription page or by reaching out to their CSM/Support.

  1. Will my additional pack be carried forward?

No. All additional packs have validity until the end of your billing cycle regardless of the date of purchase.

  1. Does the session expire every month?

Tasks refresh at the end of the billing cycle. The number of tasks depends on what you have purchased.

  1. Do I have to purchase tasks for each app under Connector Apps separately?

No, the tasks can be consumed across multiple apps that you use.

  1. What happens in case a sync fails?

Failed jobs will be available on your customer dashboard. We can also investigate it from our end and ensure that the error is fixed and your data is up to date.

  1. Who do I reach out to if I have any queries regarding these apps?

You can reach out to support@freshservice.com. Our team will evaluate your requirements/query and get back to you.
