Summary


Transcend to Service Oriented Operations (SOO) with Freshservice Service Health Monitoring. Meet and exceed service level agreements by discovering assets, mapping interdependencies, and monitoring business and technical services. Discover the ‘what’ of a service to decode ‘how’ to fix it best, to provide high quality services to your end users.


Why Service Health Monitoring?

To keep your business up and running and customers happy, your Service Desk and ITOps Teams manage tickets, requests, and alerts. Each of these provides a teaser of sorts into underlying issues. But connecting all this data with end-user experience is complicated and time-consuming. However, there is a better way to get the complete story. And it resides with your end users in the form of services they consume.


Imagine looking through the same lens as your end user. Once you manually map the assets powering a service, you would be viewing the state of the service – the value delivered to your end user – rather than the status of individual alerts or tickets. With this view, you’ll be able to identify all the tickets affecting a service, prioritize those with the maximum impact, and reestablish normalcy for your end-users sooner rather than later.


Freshservice Service Health Monitoring is a window that provides this user-centric perspective into the state of your business.


How to set up Service Health Monitoring?


Service Health Monitoring can be set up in two ways:

  1. Option 1 – Manually create a service and map monitoring tools to it: Choose this option if you are going to integrate a new monitoring tool with Freshservice
  2. Option 2 – Associate a monitoring tool to one or more services: Choose this option if you have already integrated one or more monitoring tools with Freshservice
Note: To use Service Health Monitoring, it is essential to enable, set-up, and use the Freshservice Alert Management System.


Option 1 – Create a service and map monitoring tools to it

  1. Click on the Alert icon on the left nav to access Service Health monitoring.




  1. You are now on the service list page that showcases sample data. Click on New Service.




  1. Enter relevant information about the new service in the form that pops up from the right side of the screen.

    1. Give the service a name such as Payments, Checkout, etc.

    2. Provide a description if required

    3. Specify the service type i.e. Business or Technical

    4. Choose the impact of the service if it were to go down

    5. Select the agent group to be notified whenever the service goes down

    6. Select the individual point of contact for this service

    7. Attach relevant files if needed






  1. You are now on the service details page. On this page you will be able to view the information you entered about the service.

Plus, you will see the following functionalities:

  1. Relationships: Use it to map all assets powering a service

  2. Associations: Use it to check the top five alerts and incidents associated with the service. Click on View All to view all the associated alerts and incidents.

  3. Alert configurations: Use it to access the monitoring tools generating the alerts that define the state of the service

  4. Activities: Use it for a timeline view of the progression of events related to the service

  5. On-call details: Use it to check the on-call agent group associated with the service




  1. To start monitoring the state of a service, you need to associate it with the monitoring tools generating the alerts that convey the state of the assets related to that service. Until you map one or more monitoring tools to a service, the tool will prompt you to do so.





  1. Once you associate the monitoring tools with the service, you’ll see the top 5 alerts and incidents on the service overview tab.


Note: If you are mapping the service to a new monitoring tool, follow the setup instructions in this article.








Option 2 – Associating a monitoring tool with one or more services

You can also create a service through the Alert Management module by associating a monitoring tool with a new or existing service.

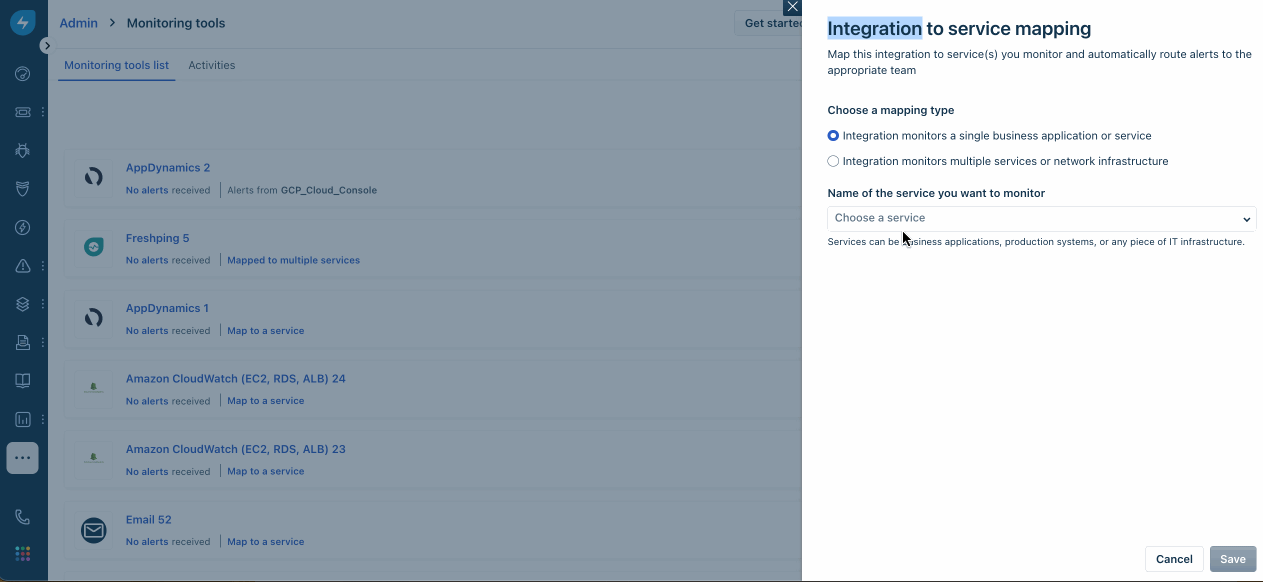

  1. In the Admin pane, scroll down to the IT Operations Management section and click on Monitoring Tools

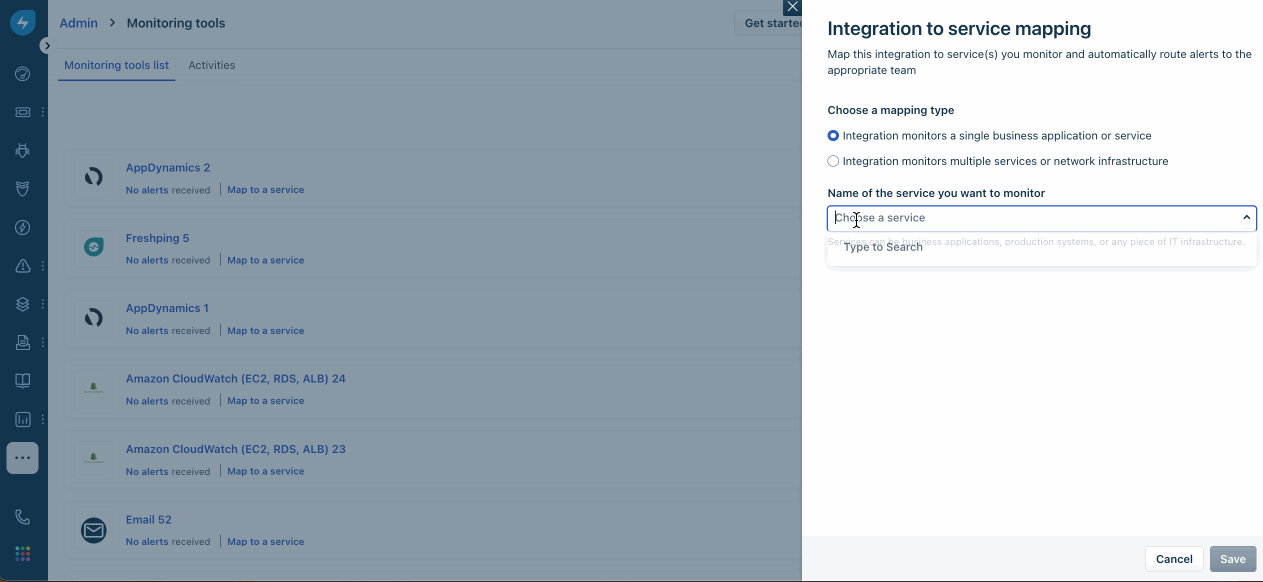

  2. In the Monitoring Tools list page, choose the monitoring tool you want to associate with a service and click either on the Service icon or on Map to a service

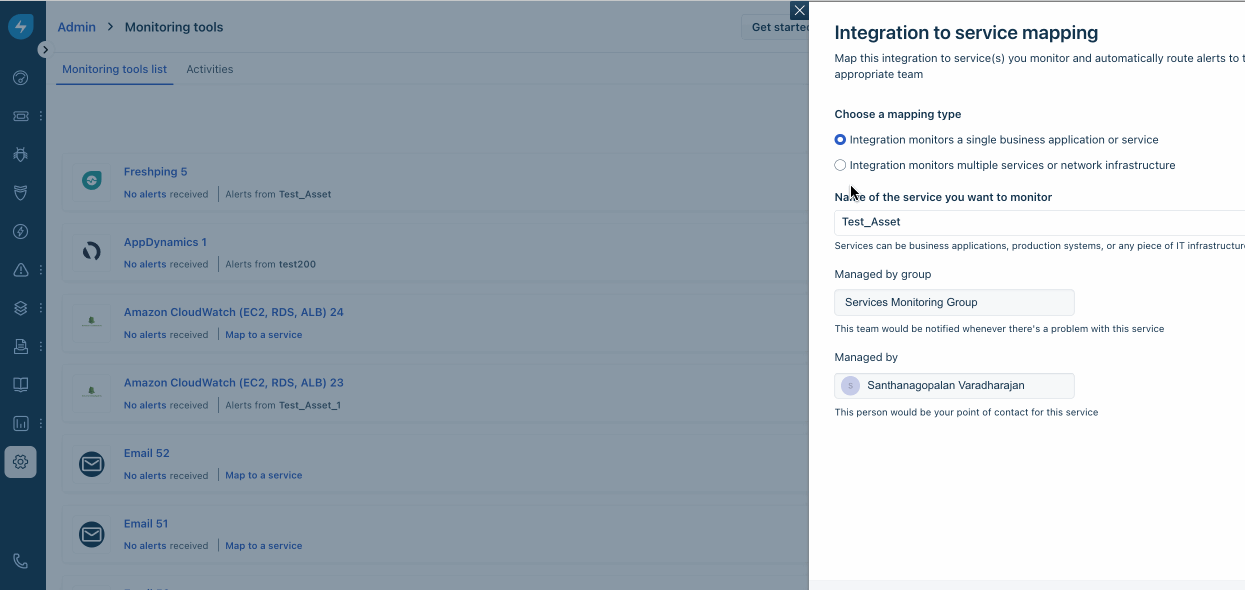

  3. Next, choose whether you want to map the monitoring tool to a single service or multiple services

Dissociating a monitoring tool from a service

To disassociate a monitoring tool from a service:

  1. Visit the service detail page for that service

  2. Click on Alert Configurations

  3. Click on the detach icon

  4. Confirm the action to detach


Deleting a service

To delete a service, visit the Service list page and:

  1. Click on the service you want to delete
  2. On the service details page, click on the three dots icon on the top right, and click Delete
  3. A slider will inform you about the integrations that would be delinked from the service.
  4. Review your decision and confirm


Note: Deleted services are moved to Trash and can be retrieved within 90 days of deletion. You can also permanently delete services from the Trash. However, on permanent deletion, the service and all its associated information will become irretrievable.



Functionalities that you can make use of

  1. Tabs on the Service details page

The service detail page has a number of features you could make use of. In addition to the overview tab, you'll notice several more tabs. See associated assets under the Relationships tab, associated alerts and incidents under the Associations tab, all the monitoring tools associated with this service under the Alert Configurations tab, and a timeline of the activities performed on on the service under the Activities tab.


2. Right side pane on the service details page

This would provide you with a quick view into

  • Service Properties
    • Impact
    • Managed by group
    • Managed by (primary poc)
    • Primary on-call (with an option to view all on-call members)


3. Service map page

Use it to visualize multi level dependencies between impacted resources and click-through to related alerts and incidents.

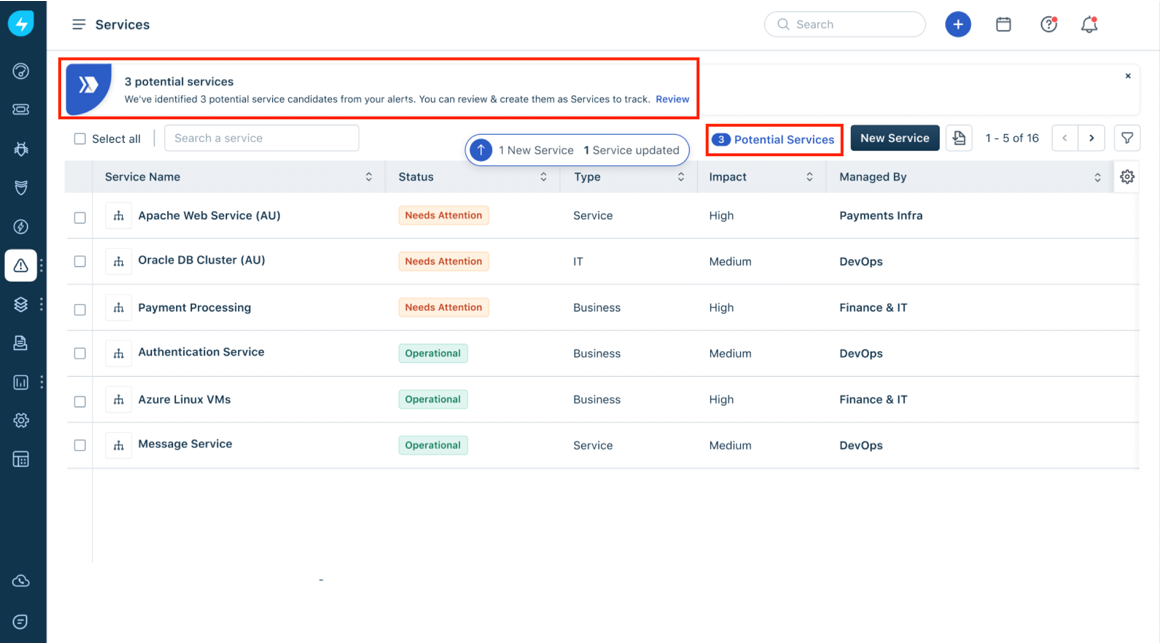

3. Services List Page

This provides a single pane view of all services including:

  1. Service name
  2. Health status
  3. Type
  4. Impact
  5. Managed by Group
  6. Managed by (primary poc)


Use the Settings icon to customize this view as per your requirements.



Use the Filter icon to select filters and quickly find the service you are looking for.



Note: This feature is not available in Sandbox as of now.
