Integrate Automox with Freshservice workflow automation to manage devices, policies, and device groups seamlessly. This integration helps automate routine device management and policy actions directly from Freshservice.

TABLE OF CONTENTS

• Prerequisites
• Orchestration Capabilities
• Steps to Generate an API Key in Automox
  • Step 1: Log in to Automox
  • Step 2: Open account menu
  • Step 3: Create an API key
  • Step 4: Copy and store the key
• Configure Automox in Freshservice
• Known limitations in the Automox API behavior

Prerequisites

Before configuring the Automox Orchestration App, you need to generate an API key in Automox. This key serves as the credential for connecting Freshservice to Automox.

Orchestration Capabilities

Orchestration apps helps to automate complex tasks across connected systems.
With the Automox Orchestration App, you can perform the following operations through workflow actions:

Device Operations

• Manage device commands and queues
• Issue a command to a device
• Retrieve a specific device
• Update a device (server object)
• Delete a device from the organization
• Update multiple devices in bulk

Policy Management

• Retrieve a specific policy
• Create a new policy
• Update an existing policy object
• Delete a policy

Device Group Management

• Retrieve a specific group object
• Create a new server group
• Update a server group
• Delete a server group

Vulnerability Sync

• Retrieve a list of acceptable CSV formats for uploading remediations

Steps to Generate an API Key in Automox

Step 1: Log in to Automox

1. Go to https://console.automox.com

2. Sign in with your admin credentials

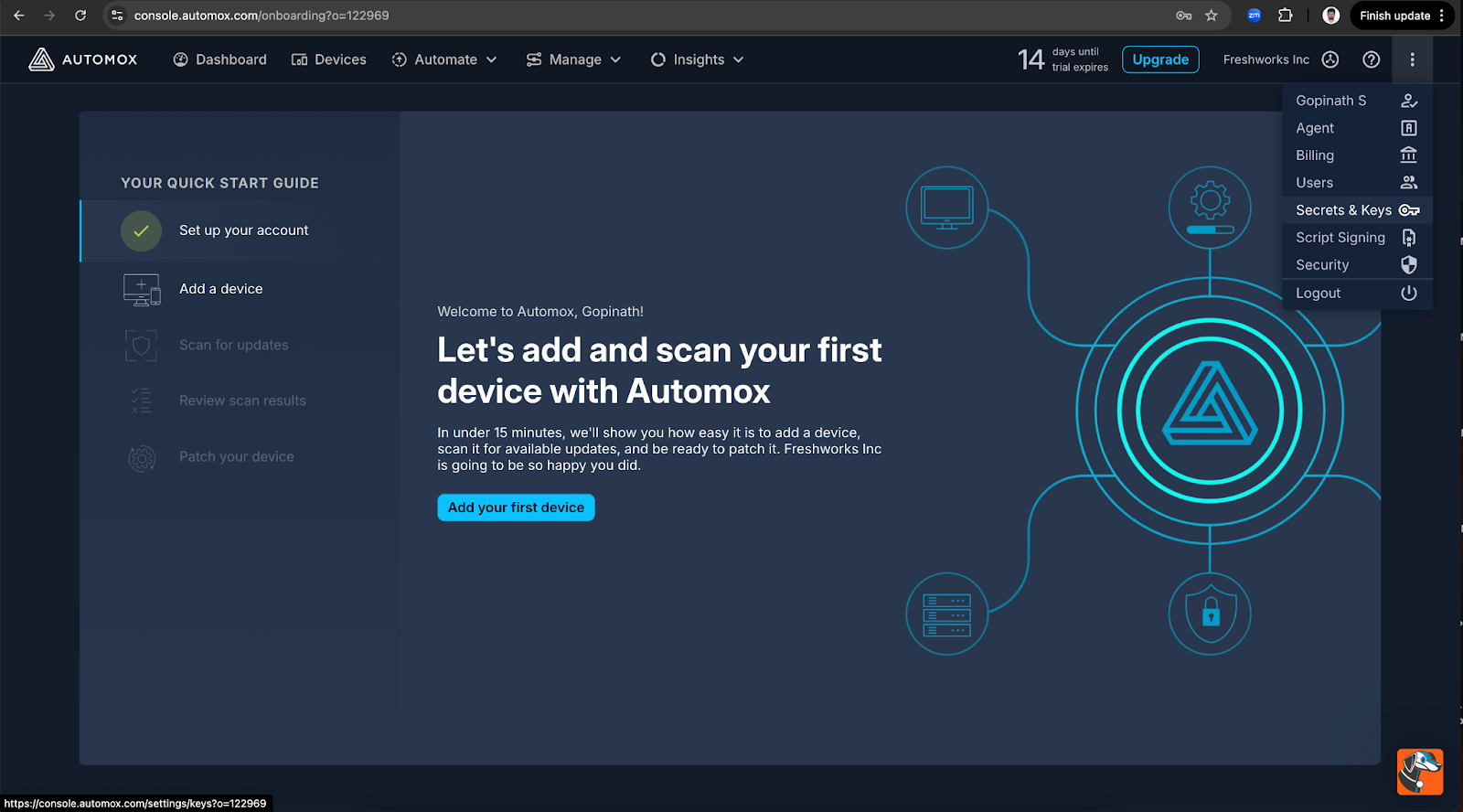

Step 2: Open account menu

1. Click your profile icon (top-right corner).

2. Select User Settings > Secrets & Keys.

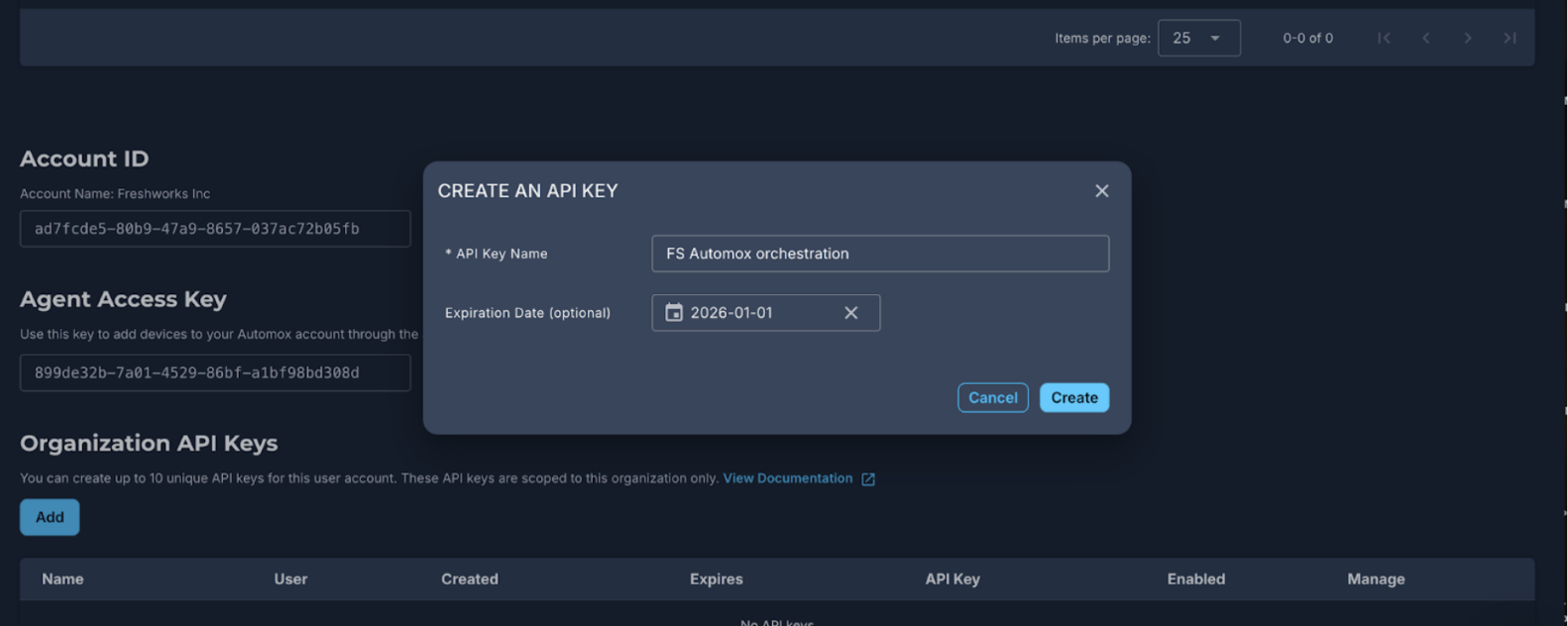

Step 3: Create an API key

1. Click Add.

2. Enter a name for the API Key (e.g., FS Automox Orchestration).

3. Click Create.

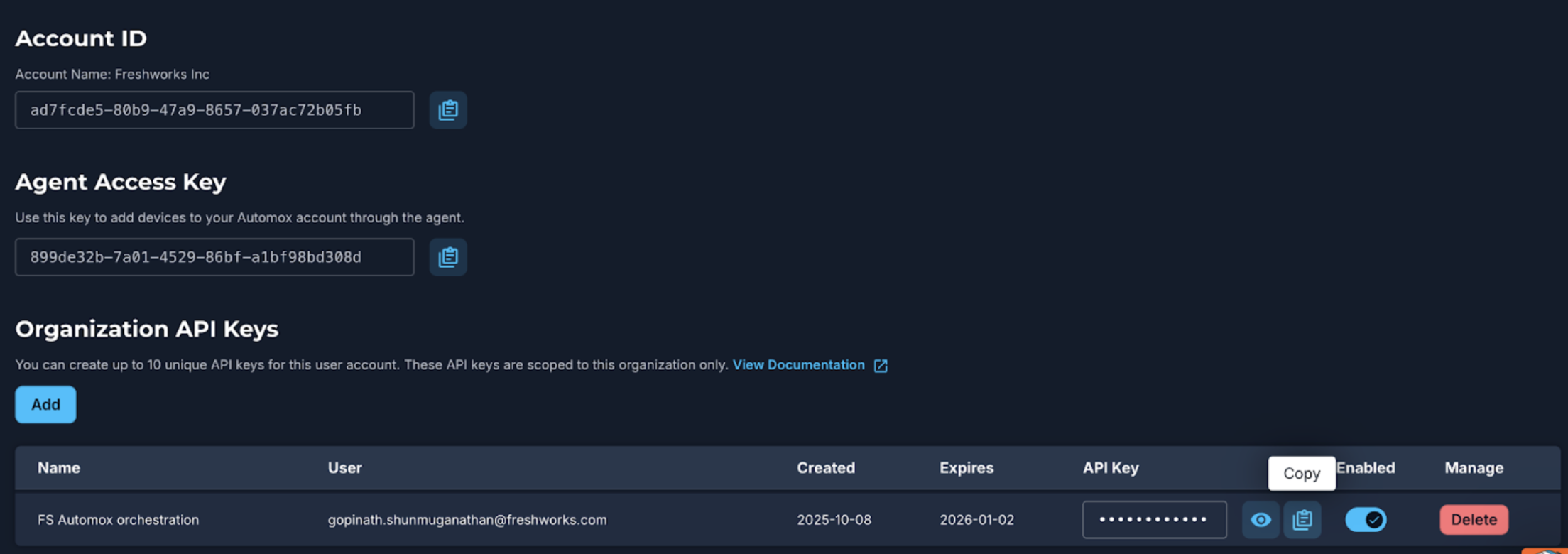

Step 4: Copy and store the key

1. View and copy the generated key.

2. Store it securely for later use.

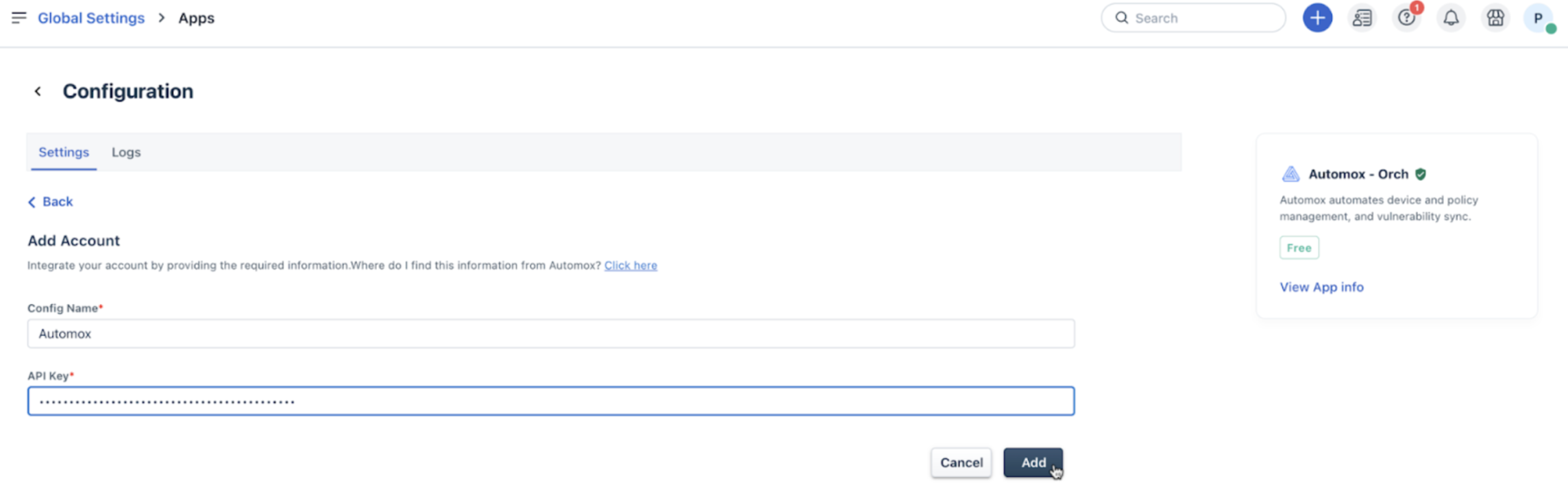

Configure Automox in Freshservice

1. Go to Orchestration Center > Automox > App Configuration

2. Paste the API key you created in Automox.

3. Save the configuration.

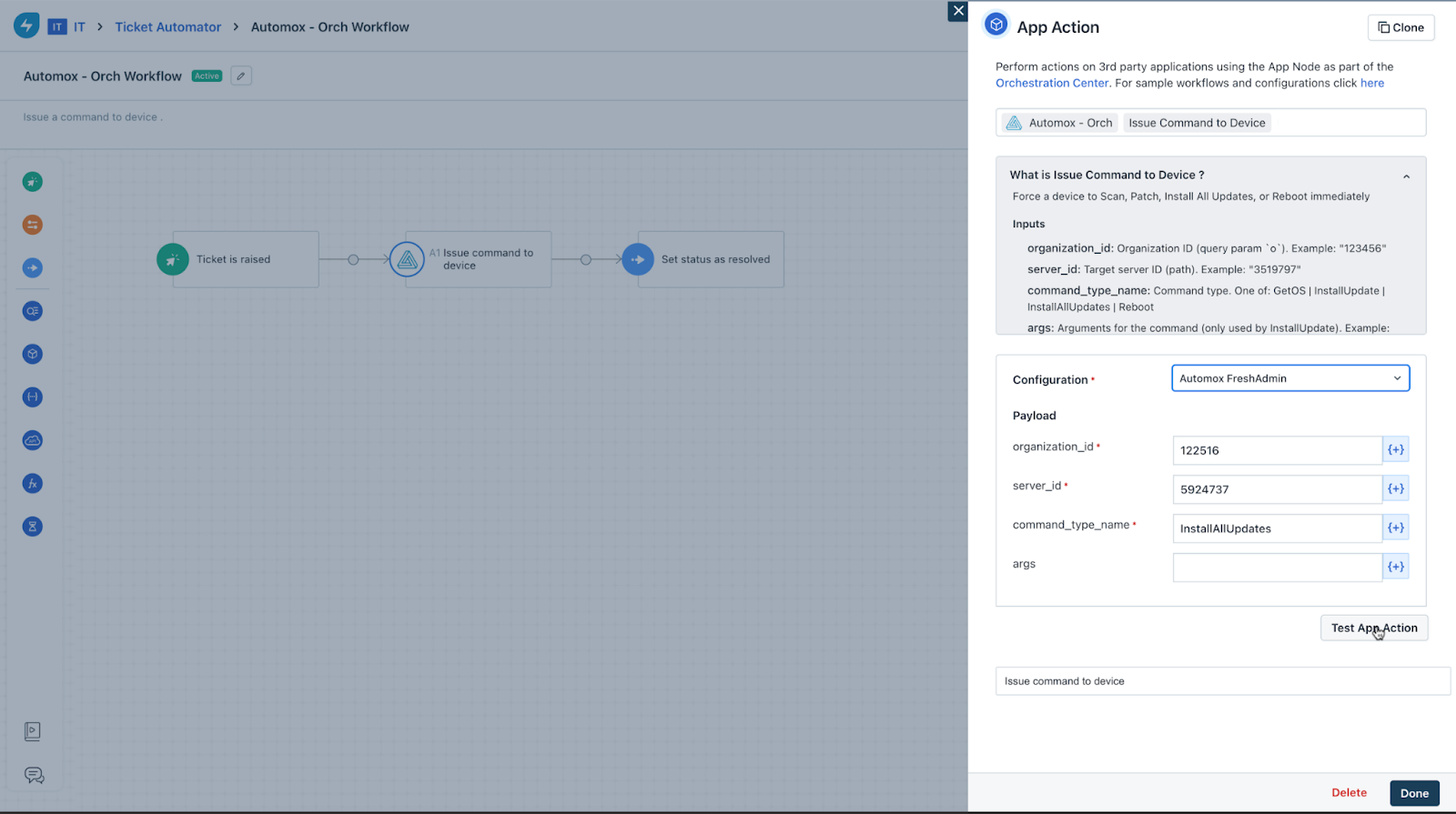

Once configured, the Automox app can be used in Workflows > App Actions > Automox - Orch to automate device and policy management activities.

Known limitations in the Automox API behavior

The following limitations are based on current behavior observed in the Automox APIs. These limitations may differ from the official Automox API documentation and can impact certain policy-related operations.

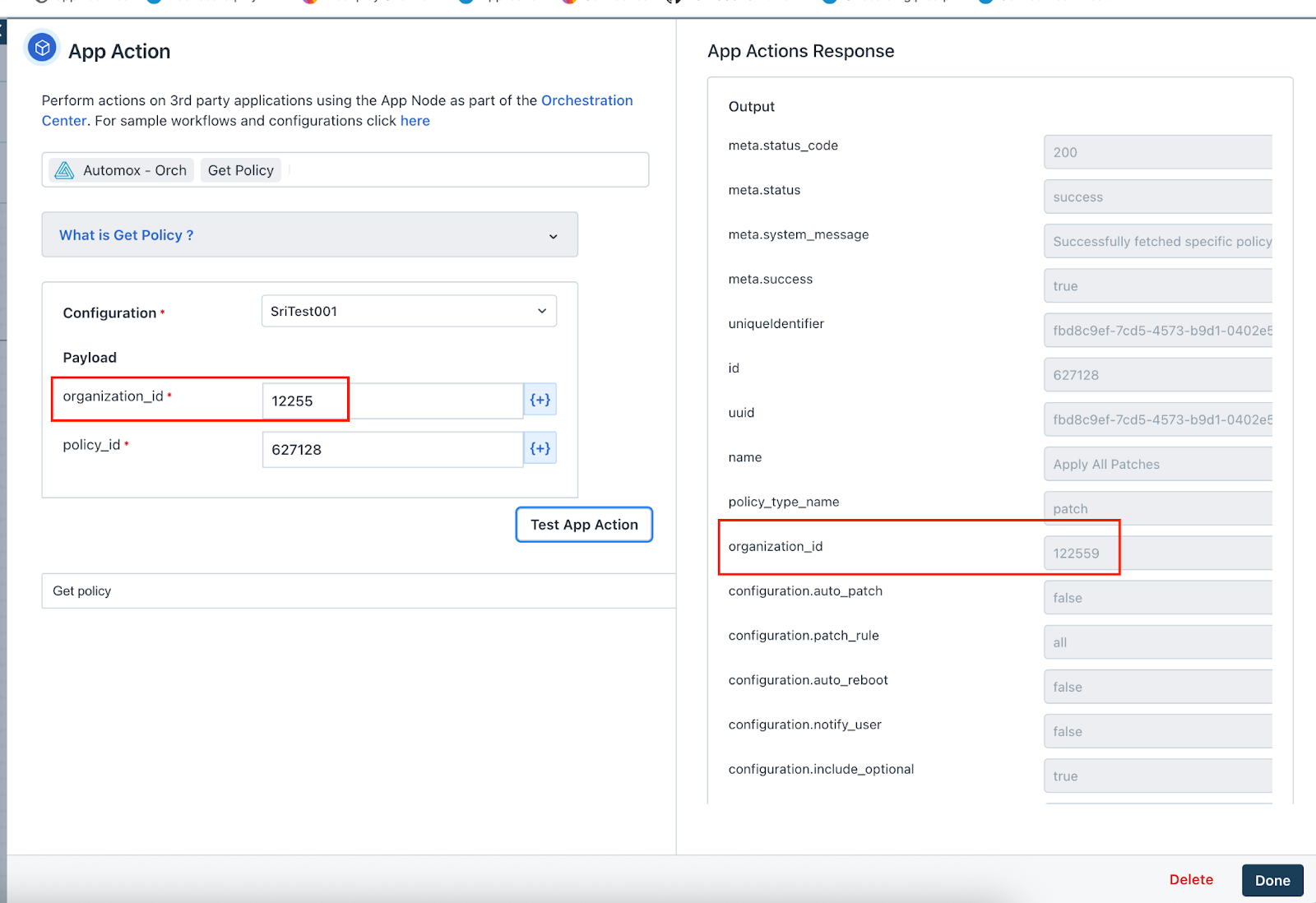

• Get Policy API ignores Organization ID

Issue
The Automox API documentation states that both Policy ID and Organization ID are required to retrieve a policy. However, the API processes the request using only the Policy ID.

Workaround
Provide the Policy ID in the request. The Organization ID is not required for successful execution.

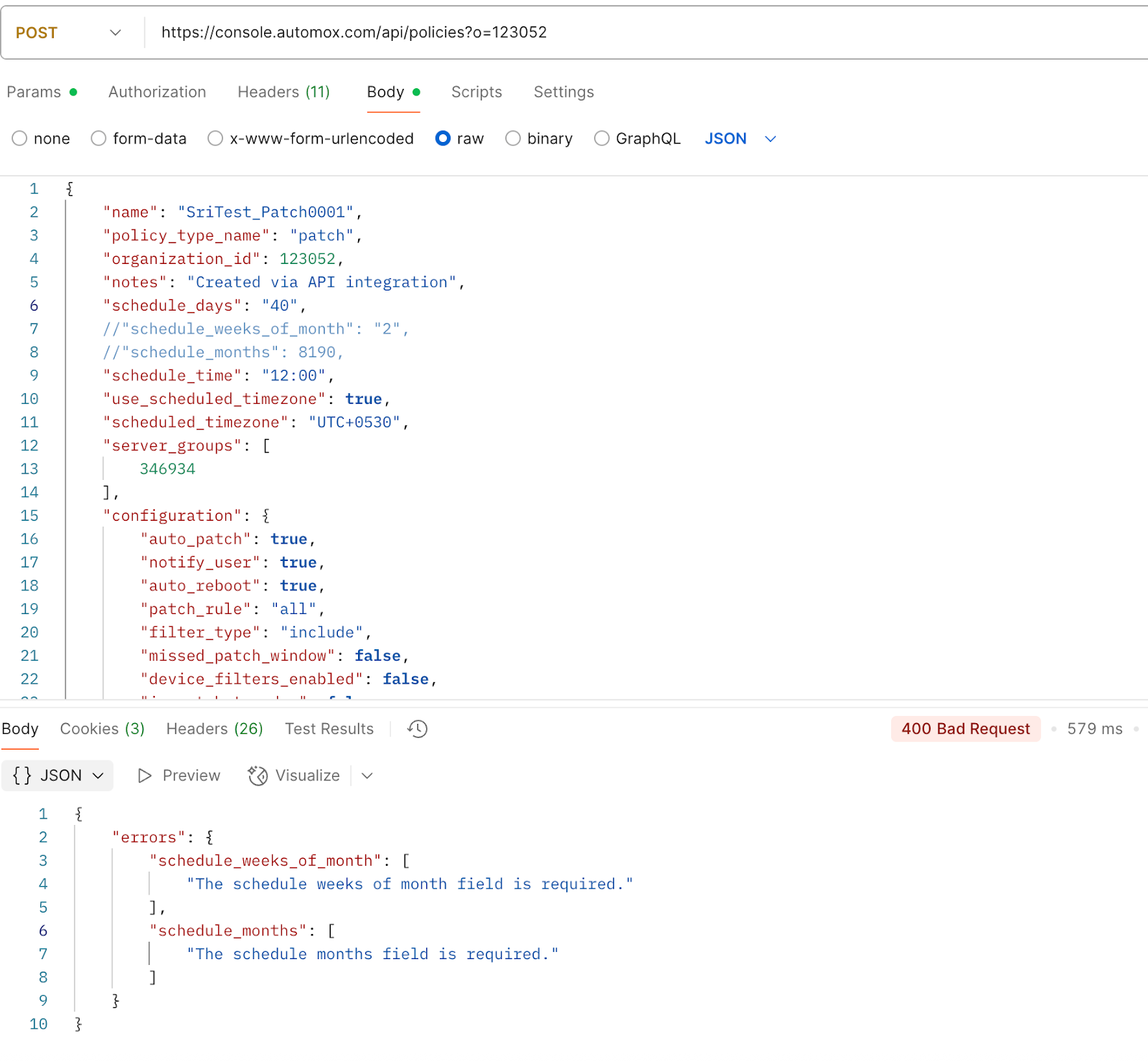

• Update Policy requires scheduling fields

Issue
The API documentation marks scheduled days and scheduled months as optional, these fields are mandatory for the update operation during execution.

Workaround
Include scheduled days and scheduled months in the update policy payload, even when they are not required per the documentation.

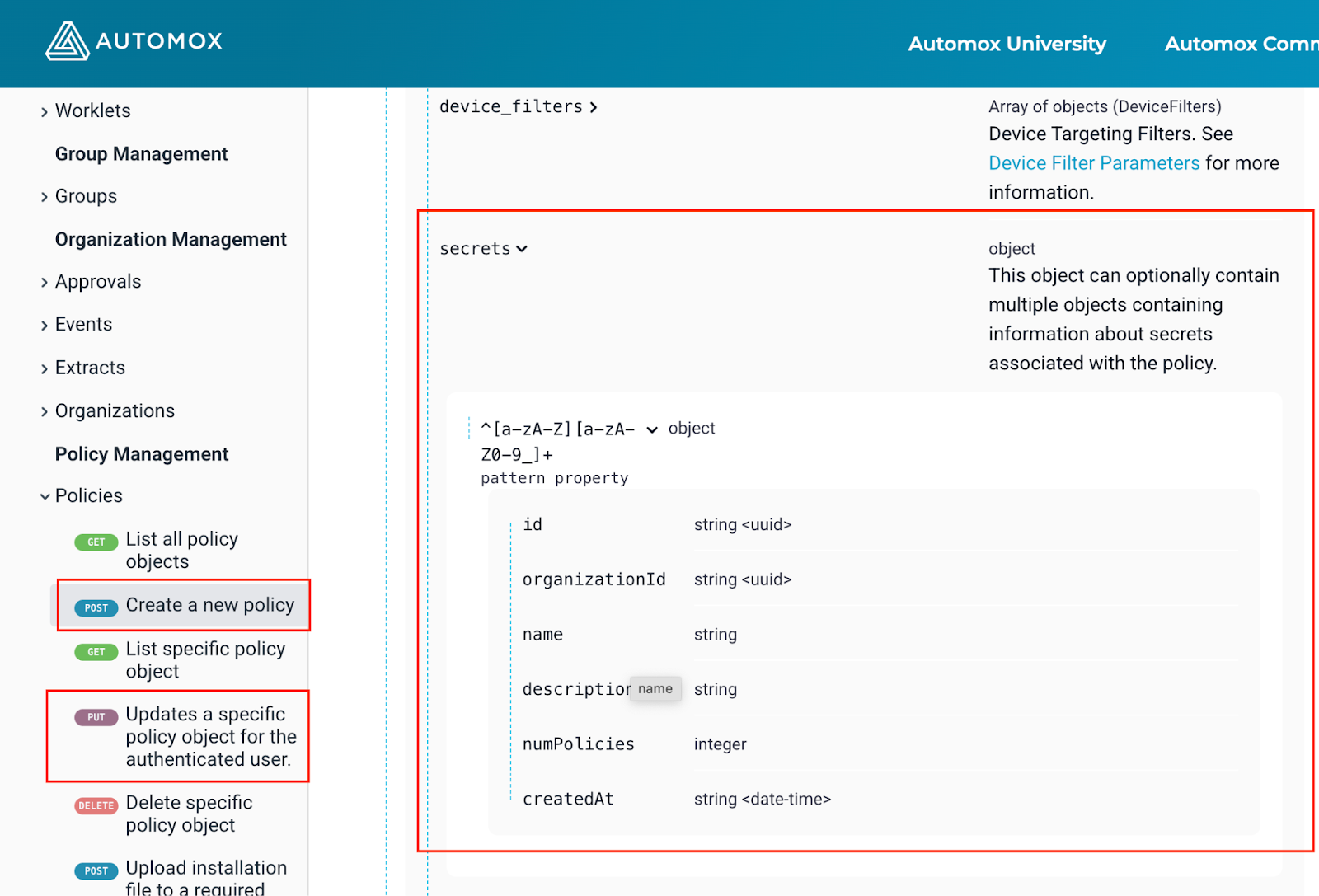

• Patch Policy creation or update fails with Secrets configuration

Issue
Creating or updating a patch policy with payload values under Configuration > Secrets results in a policy that cannot be accessed in Automox and an error occurs  while accessing.

Workaround
Avoid including Configuration > Secrets payload data when creating or updating patch policies until this issue is resolved.

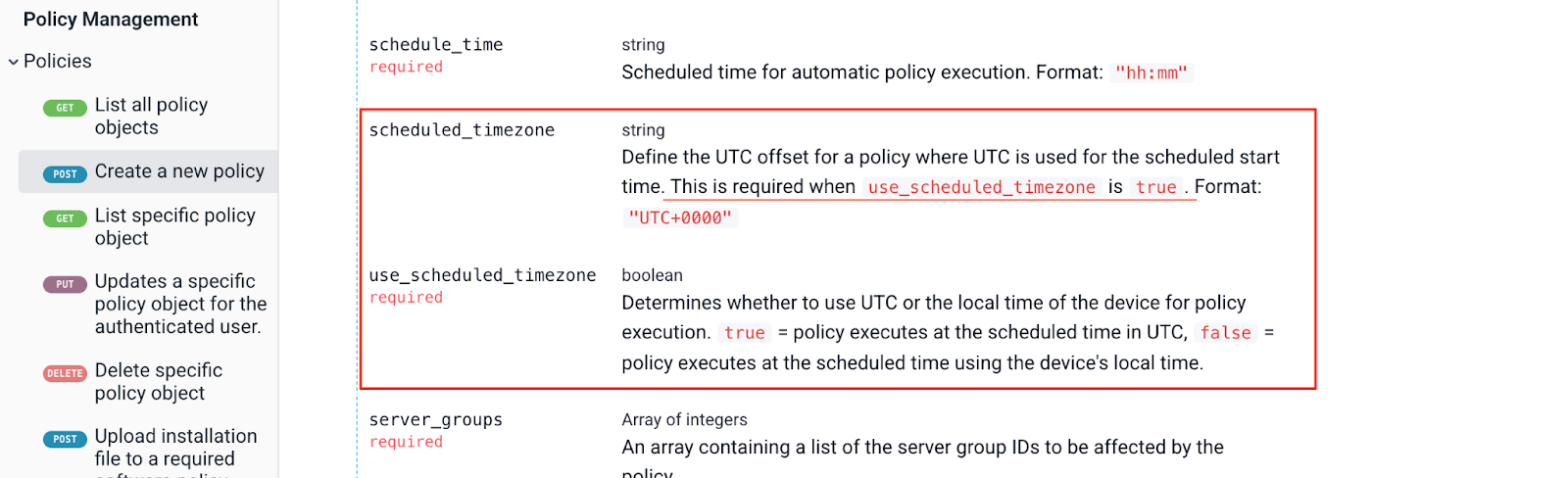

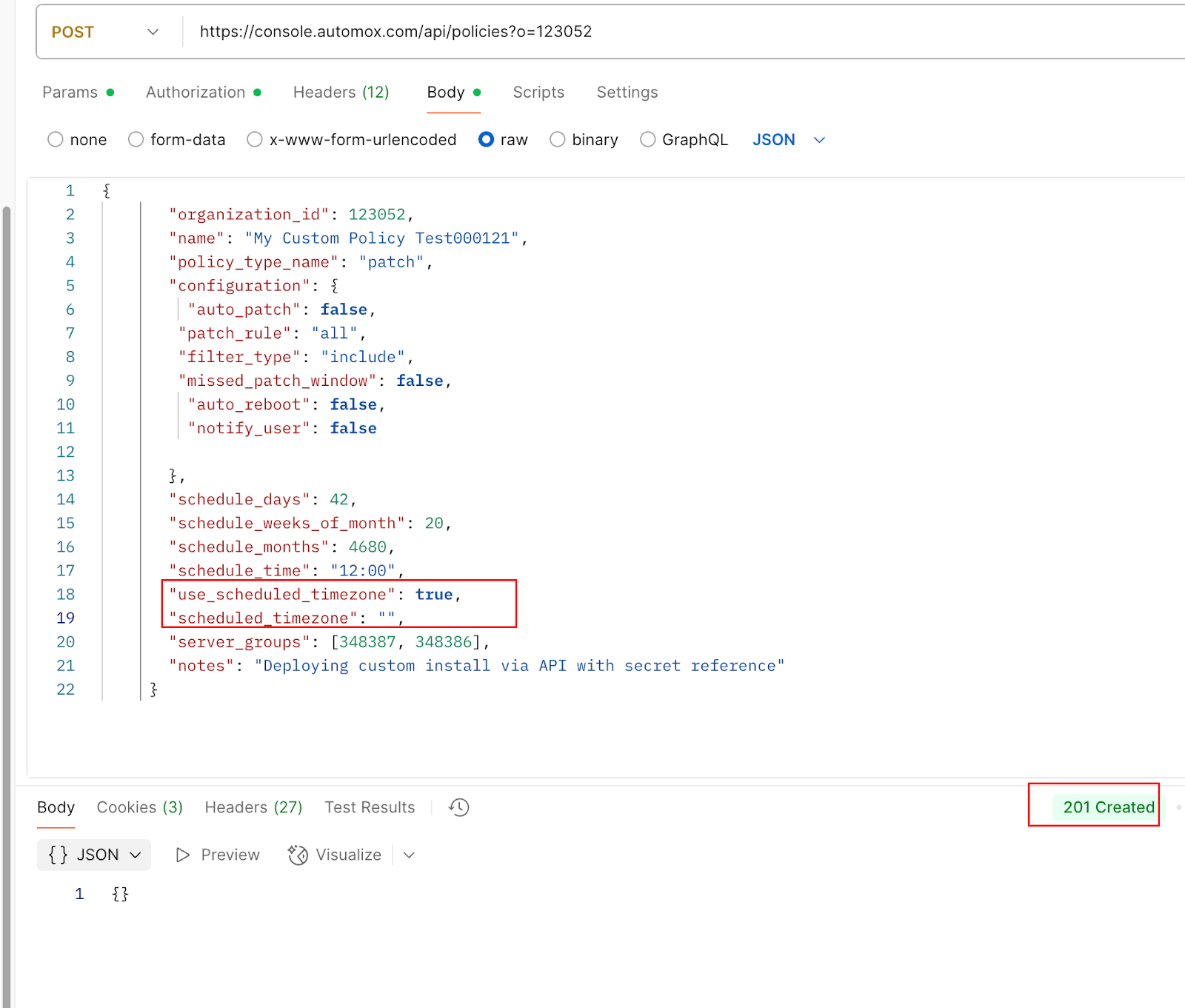

• Create Policy allows null scheduled timezone

Issue
The API documentation specifies that scheduled_timezone is required when use_scheduled_timezone is set to true.

Workaround
In the API Post request, Scheduled_timezone can be null even if we set the value as true for use_scheduled_timezone.

• Boolean values not reflected correctly in API responses

Issue
For boolean fields such as include_server_events and exclude_policy_status, the API response does not change based on whether the input value is 0 or 1.

Workaround
Do not rely on API response values to validate these boolean settings. Track input values at the request level if validation is required.

• Authentication error message mismatch

Issue
When an invalid API key is used, the API returns the message Unauthorized instead of the documented error Access token is missing or invalid.

Workaround
Treat the Unauthorized response as an indication of an invalid or missing API key and verify the credentials used in the request.
